Front Carrier Component Disassembly

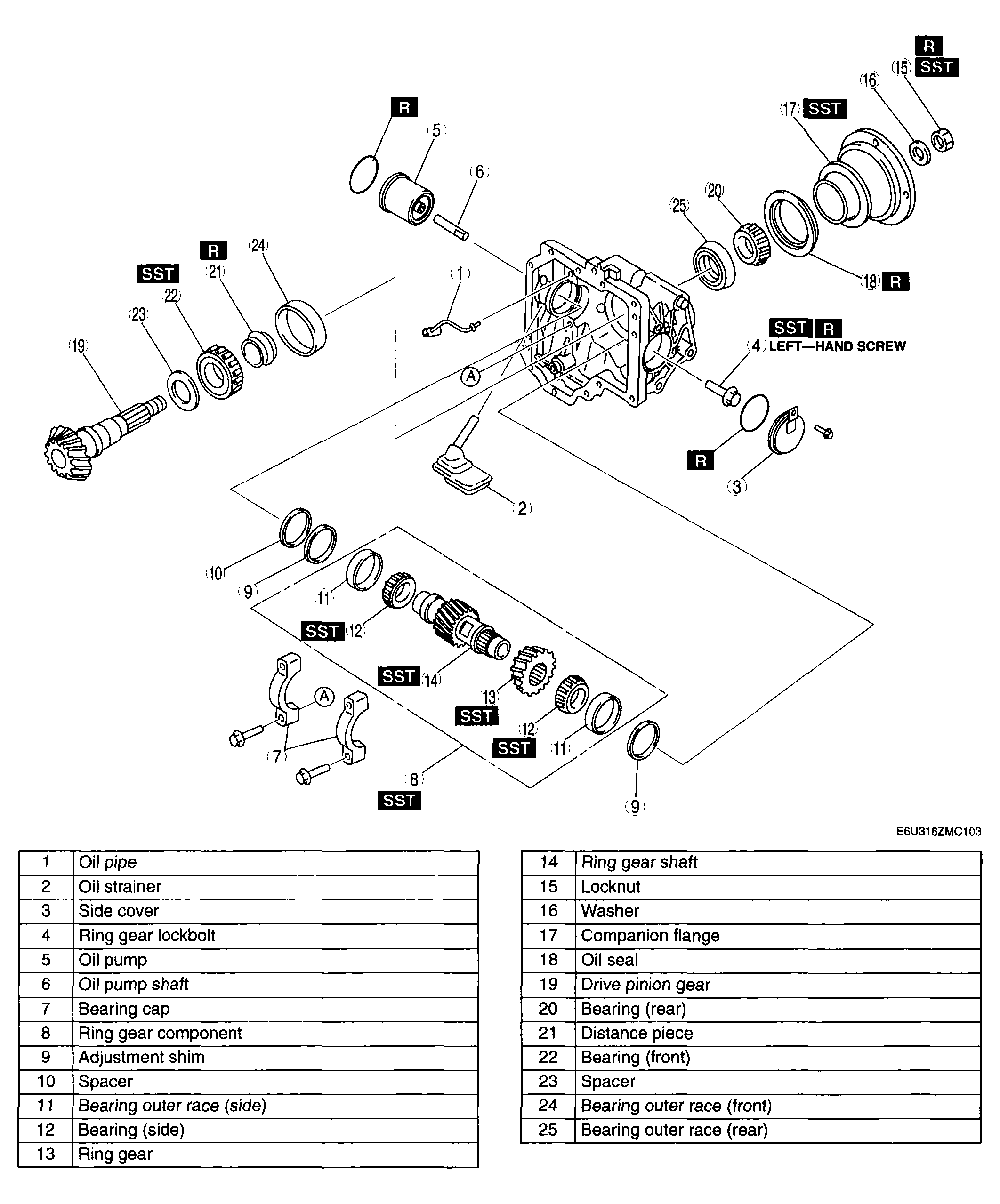

Fig 1: Exploded View Of Front Carrier Component

G04330804

Courtesy of MAZDA MOTORS CORP.
