Fuel System Diagram

L3 engine models

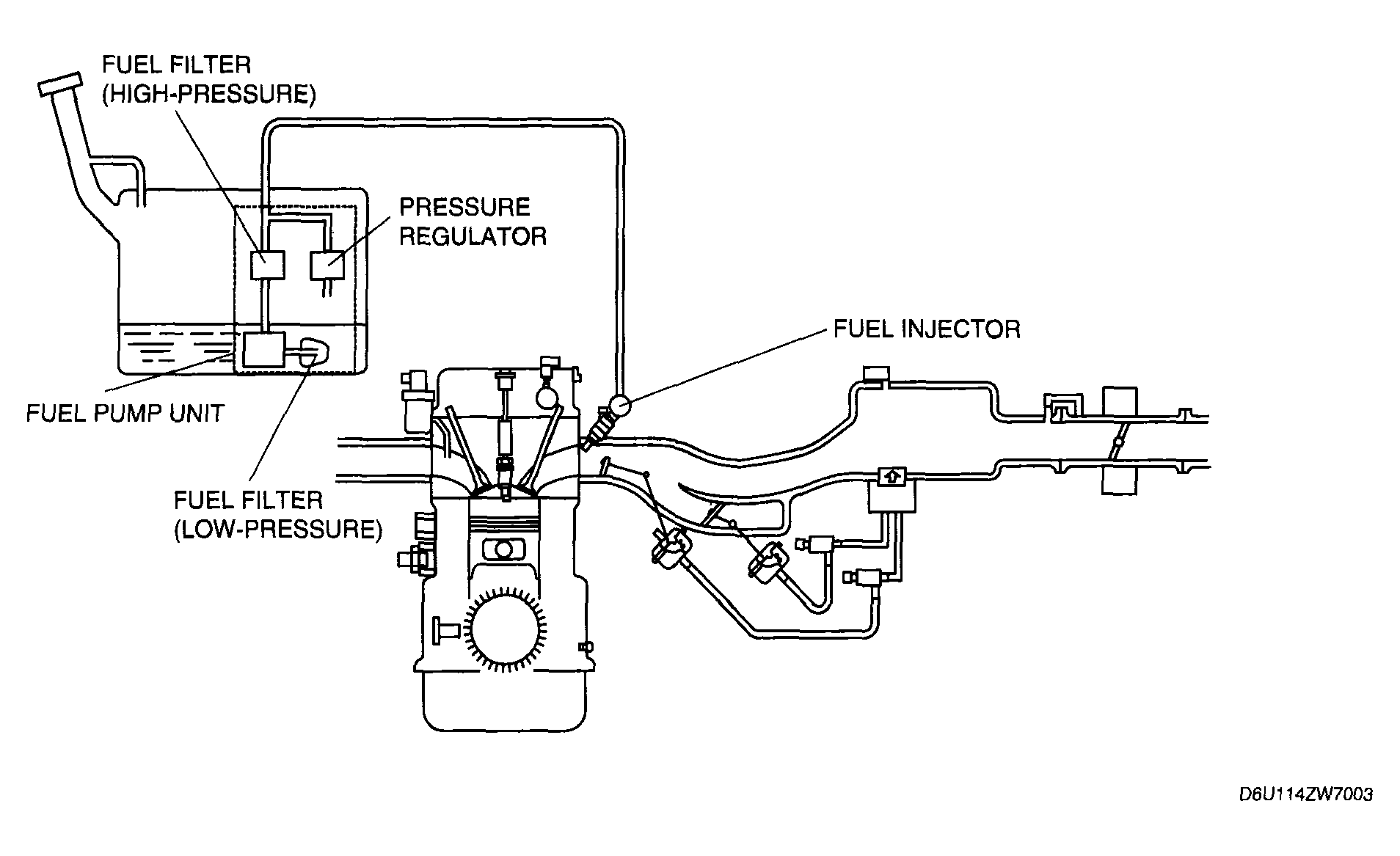

Fig 1: Fuel System Diagram (L3 Engine Models)
G04324777Courtesy of MAZDA MOTORS CORP.

AJ engine models

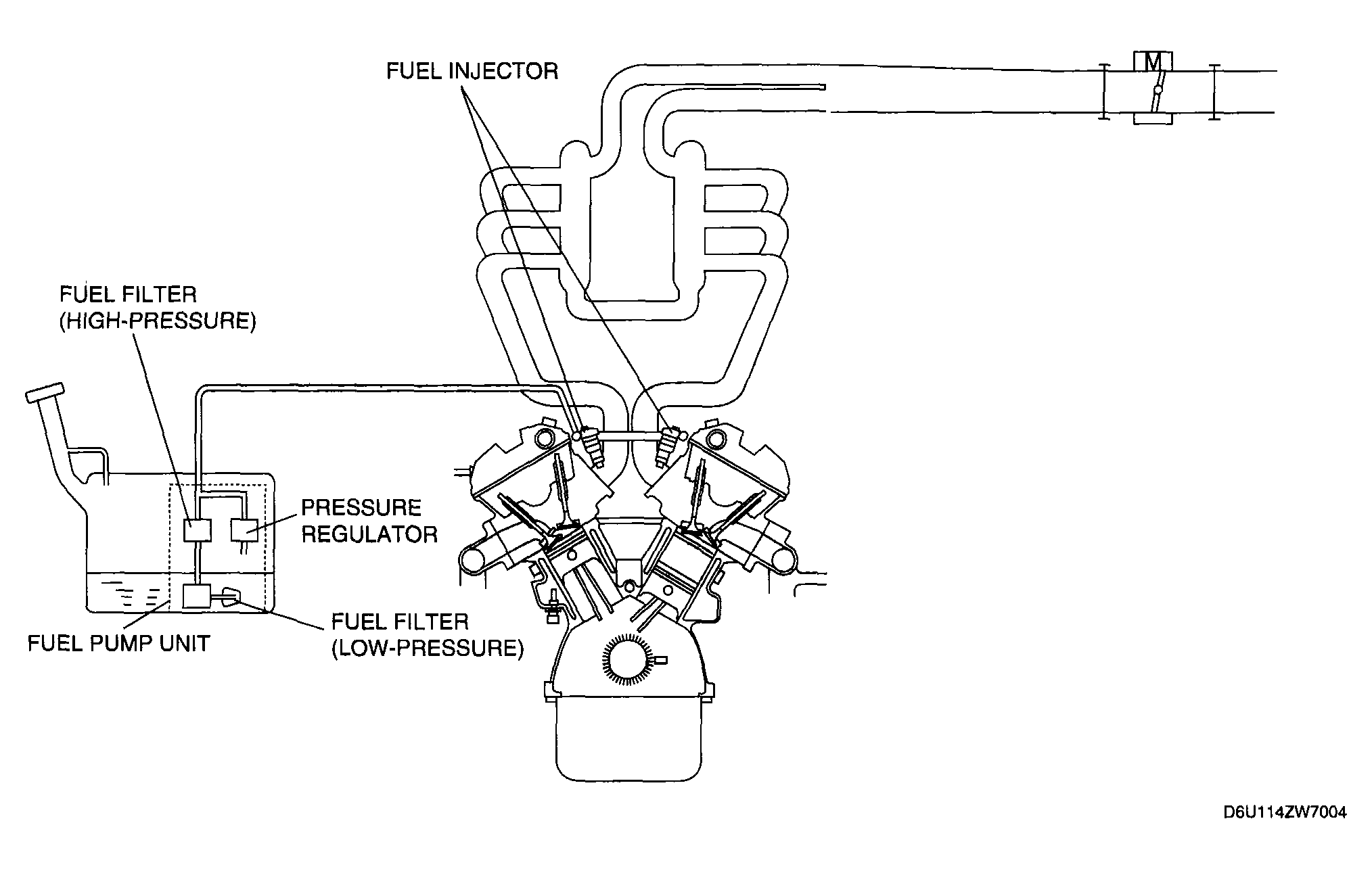

Fig 2: Fuel System Diagram (AJ Engine Models)
G04324778Courtesy of MAZDA MOTORS CORP.
