Mazda
>>
2006
>>
6 i, 4D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
On-Board Diagnostic [Engine Control System L3)
>>
Monitoring System And Control System Device Relationship Chart
>>
California Emission Regulation Applicable ATX Model
California Emission Regulation Applicable ATX Model

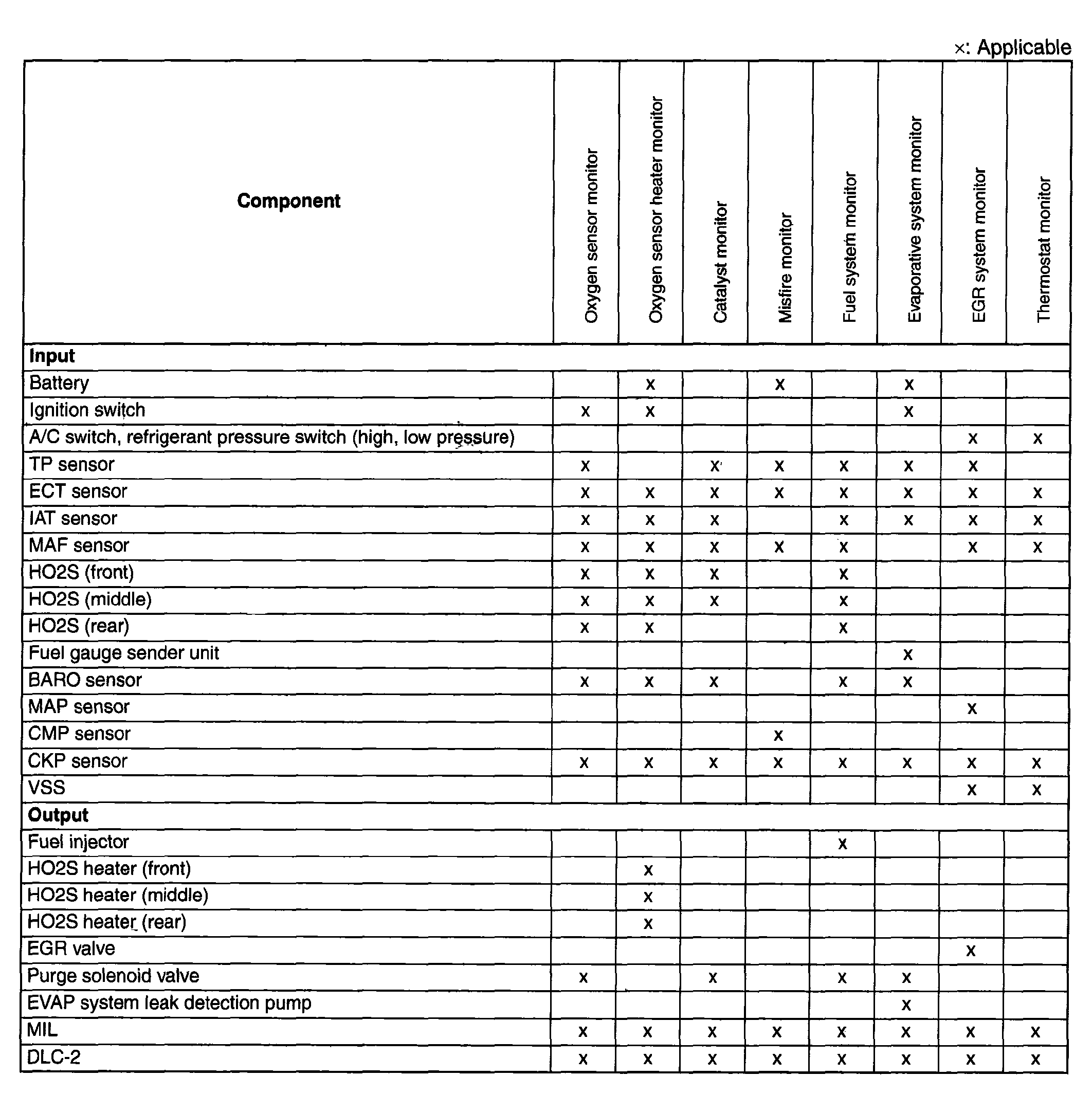

Fig 1: California Emission Regulation Applicable ATX Model - Monitoring System And Control System Device Relationship Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
