DTC P2123: Notes
DTC P2123 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P2123 |
APP sensor No. 1 circuit high input |
| DETECTION CONDITION |
- The PCM monitors the input voltage from APP sensor No. 1 when the engine is running. If the input voltage is above 4.8 , 4.5 V
, the PCM determines that the APP sensor No. 1 circuit input voltage is high.
Diagnostic support note
- This is a continuous monitor (CCM).
- The MIL illuminates if the PCM detects the above malfunction condition in the first drive cycle.
- PENDING CODE is available if the PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- Are any DTCs is stored in the PCM memory.
|

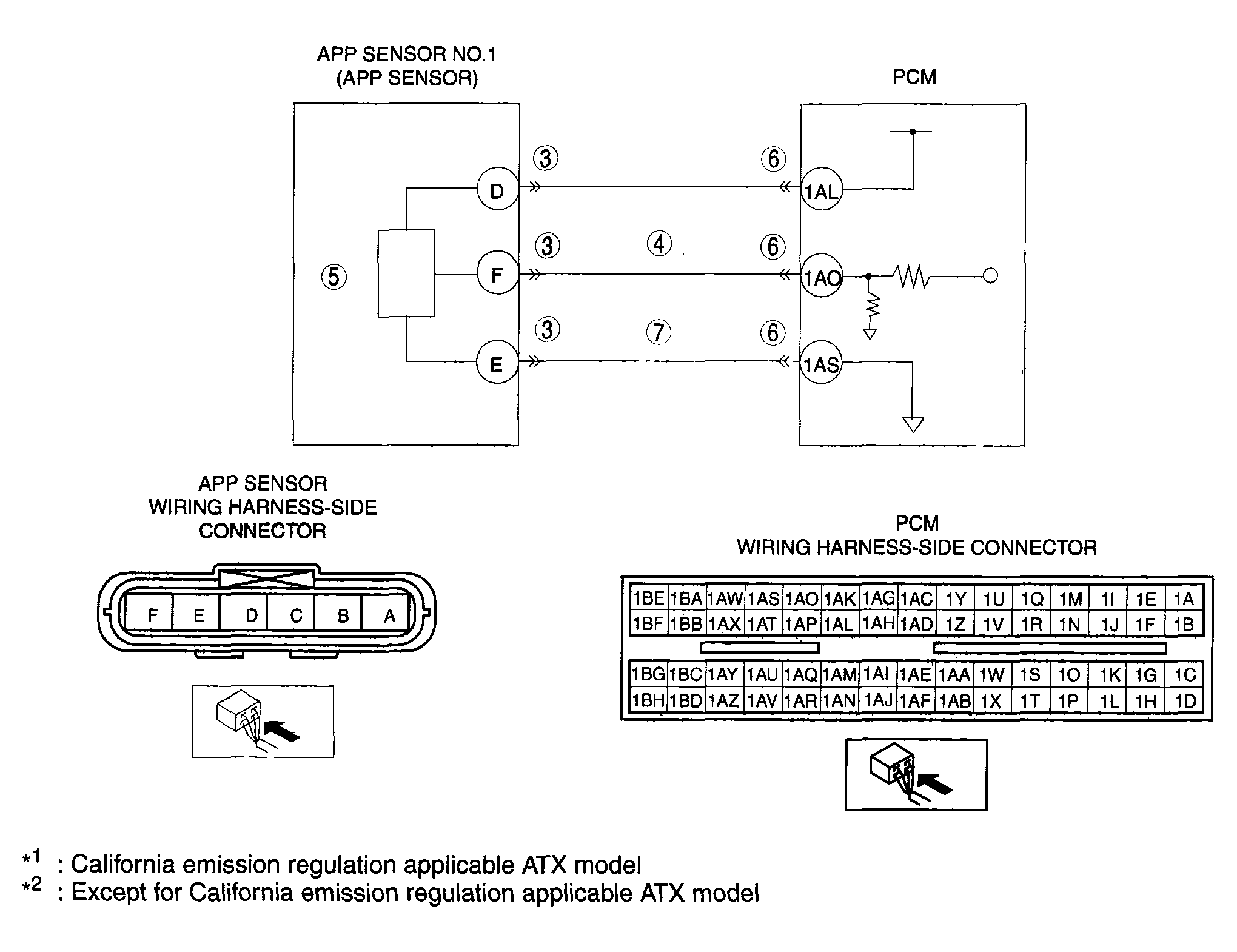

| POSSIBLE CAUSE |
- APP sensor No. 1 malfunction
- Connector or terminal malfunction
- Short to power supply in wiring harness between APP sensor terminal F and PCM terminal 1AO
- Open circuit in wiring harness between APP sensor terminal E and PCM terminal 1AS
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
