DTC P0123: Notes
DTC P0123 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0123 |
TP sensor No. 1 circuit high input |
| DETECTION CONDITION |
- If PCM detects TP sensor No. 1 voltage is above 4.9 V , 4.85 V
after ignition switch to ON, PCM determines that TP circuit has a malfunction.
Diagnostic support note
- This is a continuous monitor (CCM).
- MIL illuminates if PCM detects the above malfunction condition during first drive cycle.
- PENDING CODE is available if PCM detects the above malfunction condition.
- FREEZE FRAME DATA is available.
- DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- TP sensor malfunction
- Connector or terminal malfunction

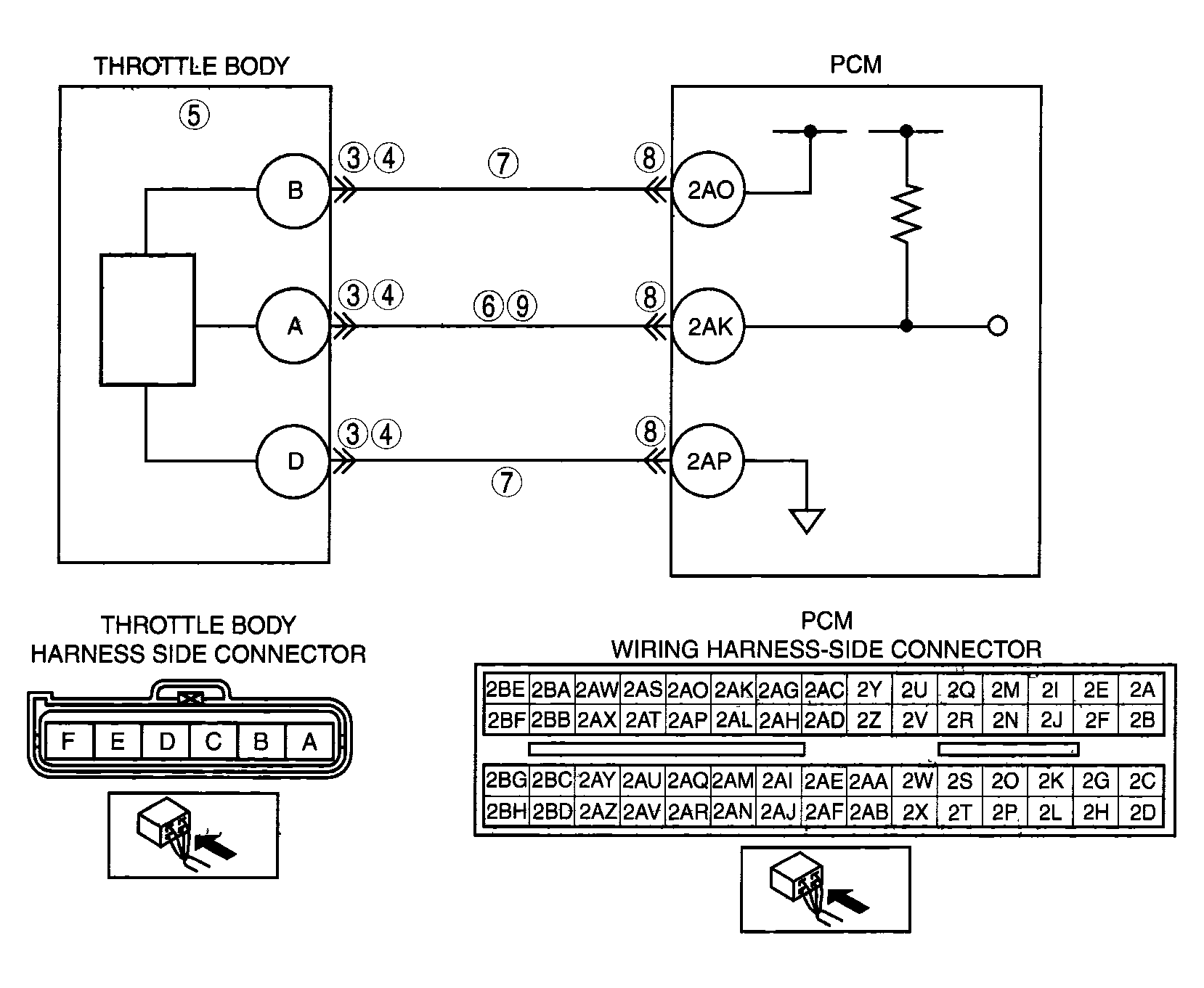

- Open circuit between throttle body terminal B and PCM terminal 2AO
- Open circuit between throttle body terminal D and PCM terminal 2AP
- Short to constant voltage supply circuit between throttle body terminal A and PCM terminal 2AK
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
