DTC P0043: Notes
DTC P0043 DETECTION CONDITION AND POSSIBLE CAUSES
| DTC P0043 |
Rear HO2S heater circuit low input |
| DETECTION CONDITION |
- The PCM monitors the rear HO2S heater control voltage when the PCM turns the rear HO2S heater off. If the control voltage exceeds 25%
of the battery voltage, the PCM determines that the rear HO2S heater control circuit voltage is low.
Diagnostic support note
- This is a continuous monitor (HO2S heater).
- MIL illuminates if PCM detects above malfunction condition in two consecutive drive cycles or in one drive cycle while DTC for the same malfunction has been stored in PCM.
- PENDING CODE is available if PCM detects the above malfunction condition during first drive cycle.
- FREEZE FRAME DATA is available.
- The DTC is stored in the PCM memory.
|
| POSSIBLE CAUSE |
- Rear HO2S heater malfunction
- Connector or terminal malfunction

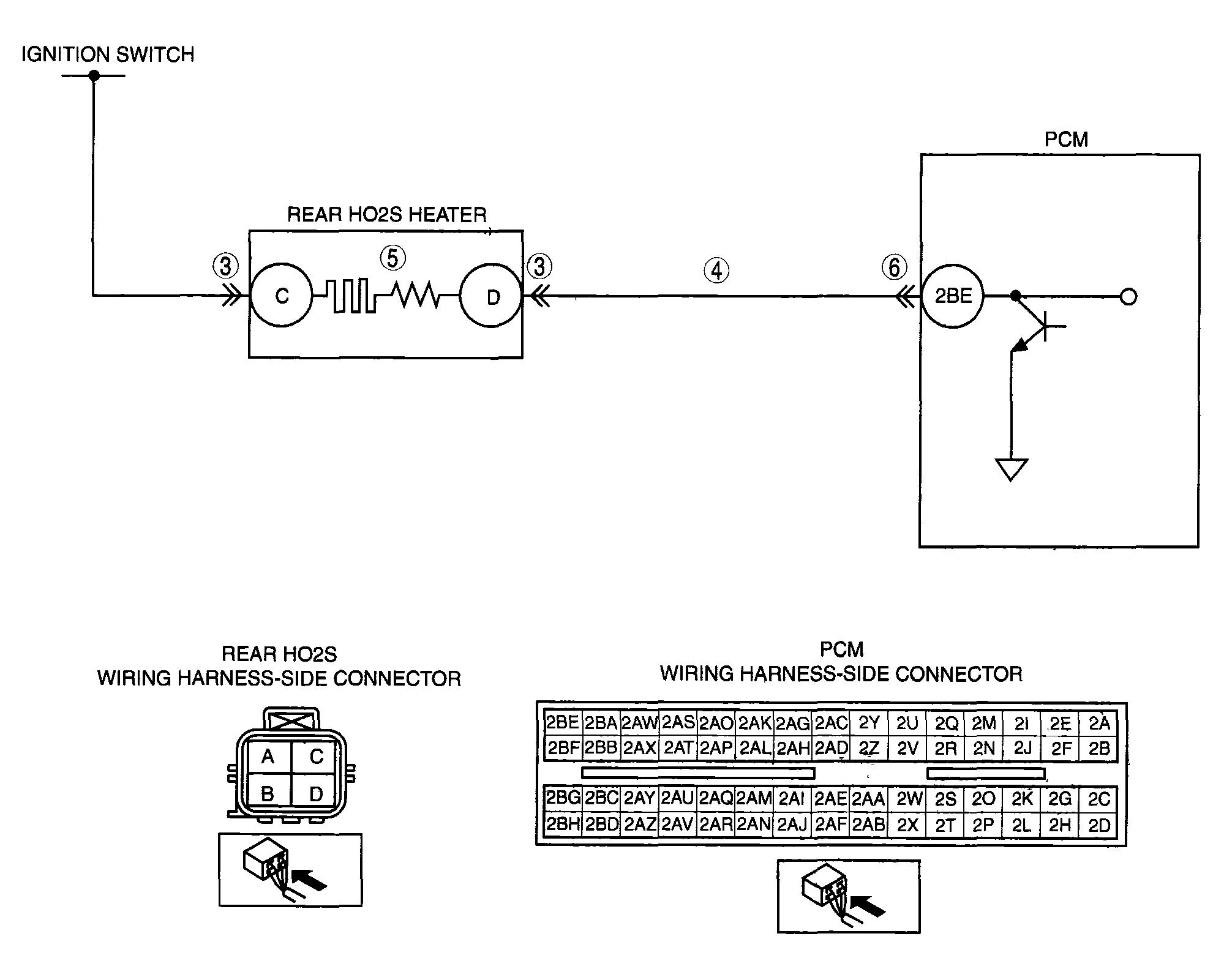

- Short to power supply in wiring harness between rear HO2S terminal D and PCM terminal 2BE
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
