Front Crossmember Bushing Removal Note

  1. Mark the crossmember as shown in the figure (rear upper side only).
    Fig 1: Identifying Mark Of Front Crossmember (Rear Upper Side)
    G04325475Courtesy of MAZDA MOTORS CORP.
  2. Remove the bushings using flathead screwdriver, being careful not to damage the front crossmember.

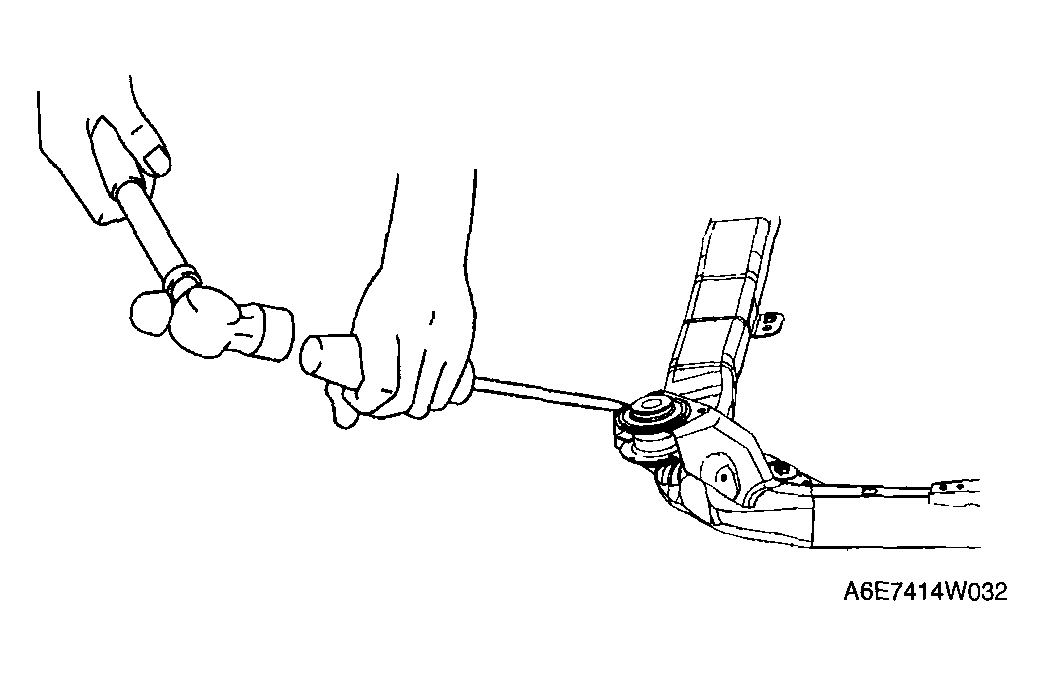

    Fig 2: Removing Bushings Using Flathead Screwdriver
    G04325476Courtesy of MAZDA MOTORS CORP.
