Rear Door Glass Removal/Installation

Fully roll down the rear door glass.
Remove the rear door trim. See REAR DOOR TRIM REMOVAL/INSTALLATION )
Remove the hole cover.
Pull up the rear door weatherstrip and remove the screw.
Remove the bolt.
Remove the glass run channel from the rear door glass guide.

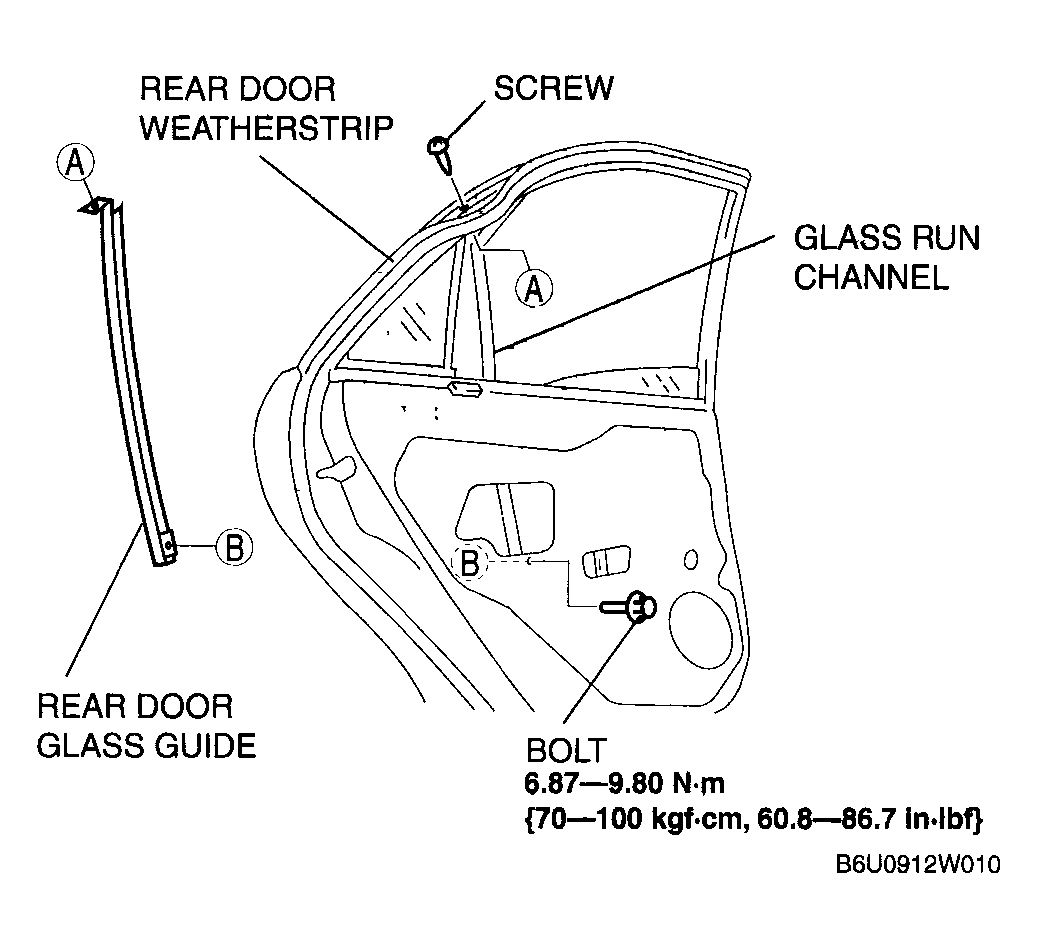

Fig 1: Rear Door Glass Guide, Glass Run Channel & Torque Specification
Courtesy of MAZDA MOTORS CORP.
Lift the rear door glass to the position where the rear door glass installation screw is visible.
Remove the screw,
Lift out the rear door glass.
Install in the reverse order of removal.

Fig 2: Door Glass Installation Screw
Courtesy of MAZDA MOTORS CORP.
