Rear Side

  1. Inspect for continuity between the power window subswitch terminals.
    • If not as specified, replace the power window subswitch.

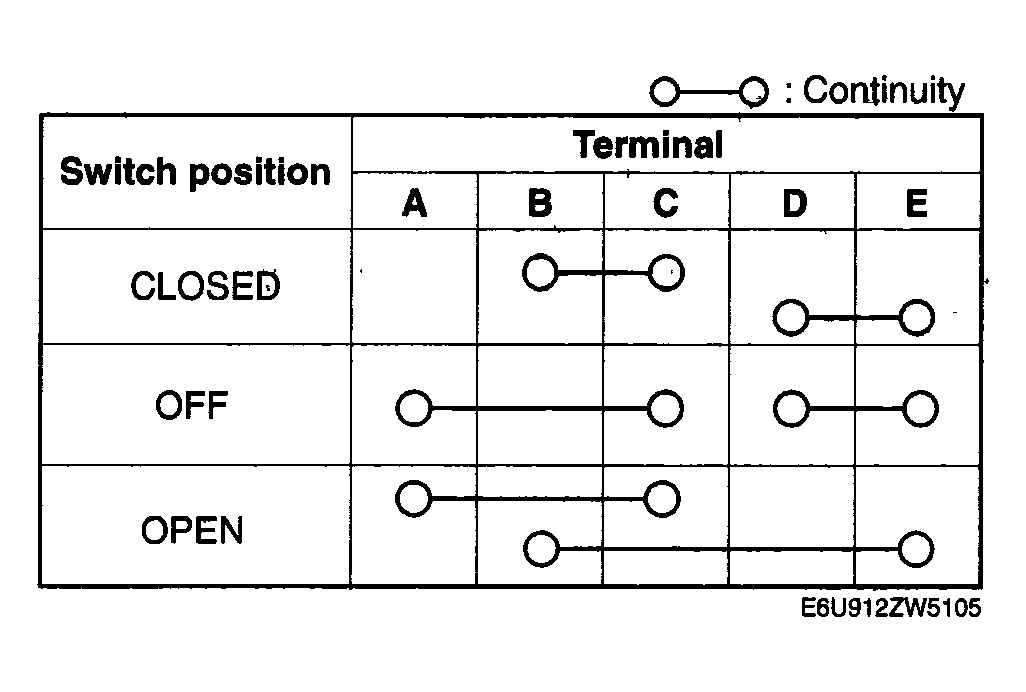

      Fig 1: Switch Continuity Reference Chart
      G04327185Courtesy of MAZDA MOTORS CORP.
      Fig 2: Inspecting Continuity Between Power Window Subswitch Terminals
      G04327186Courtesy of MAZDA MOTORS CORP.
