SUNVISOR Removal/Installation

  1. Remove the screw, then the sunvisor.
  2. Disconnect the vanity mirror illumination connector.

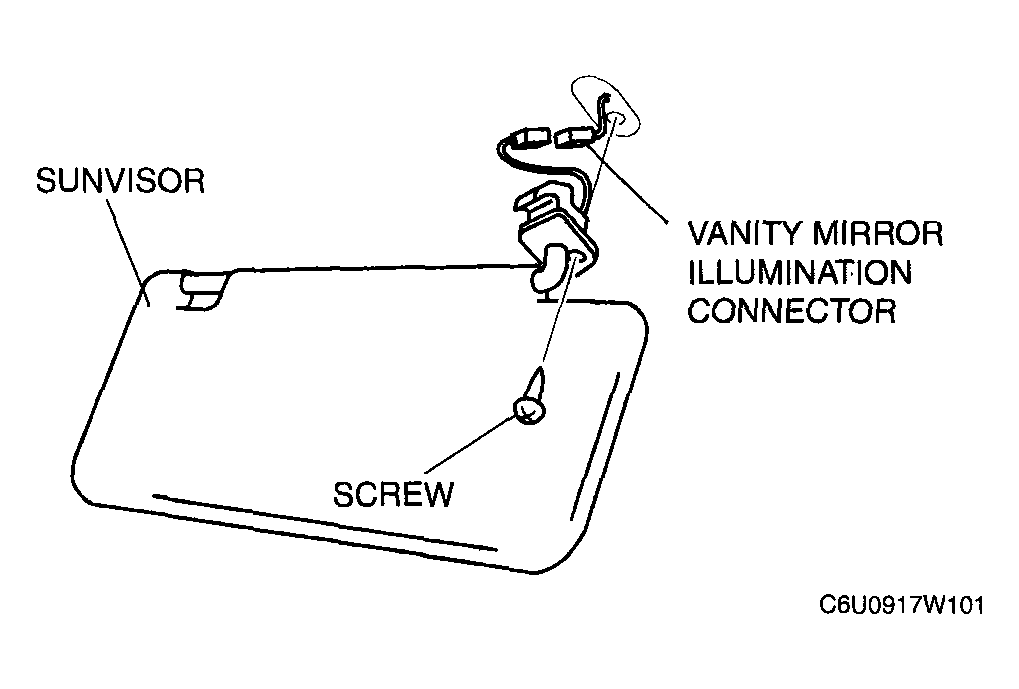

    Fig 1: Vanity Mirror Illumination Connector & Sunvisor
    G04327498Courtesy of MAZDA MOTORS CORP.
  3. Disengage the center adapter (sunvisor stopper) from the body using a fastener remover.
  4. Install in the reverse order of removal.

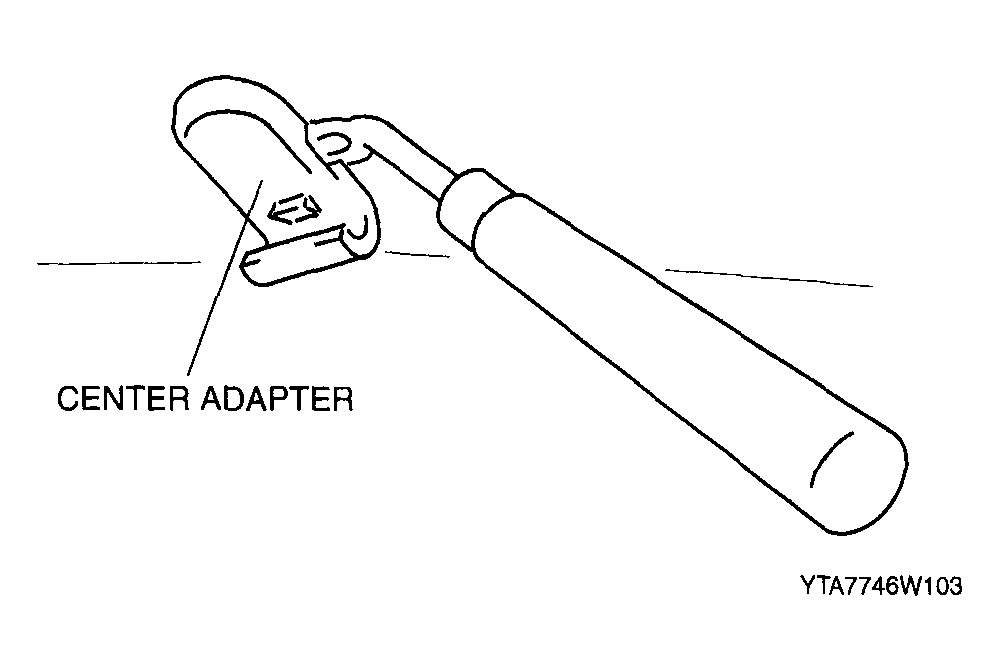

    Fig 2: Center Adapter (Sunvisor Stopper)
    G04327499Courtesy of MAZDA MOTORS CORP.
