Location Index
Location Index

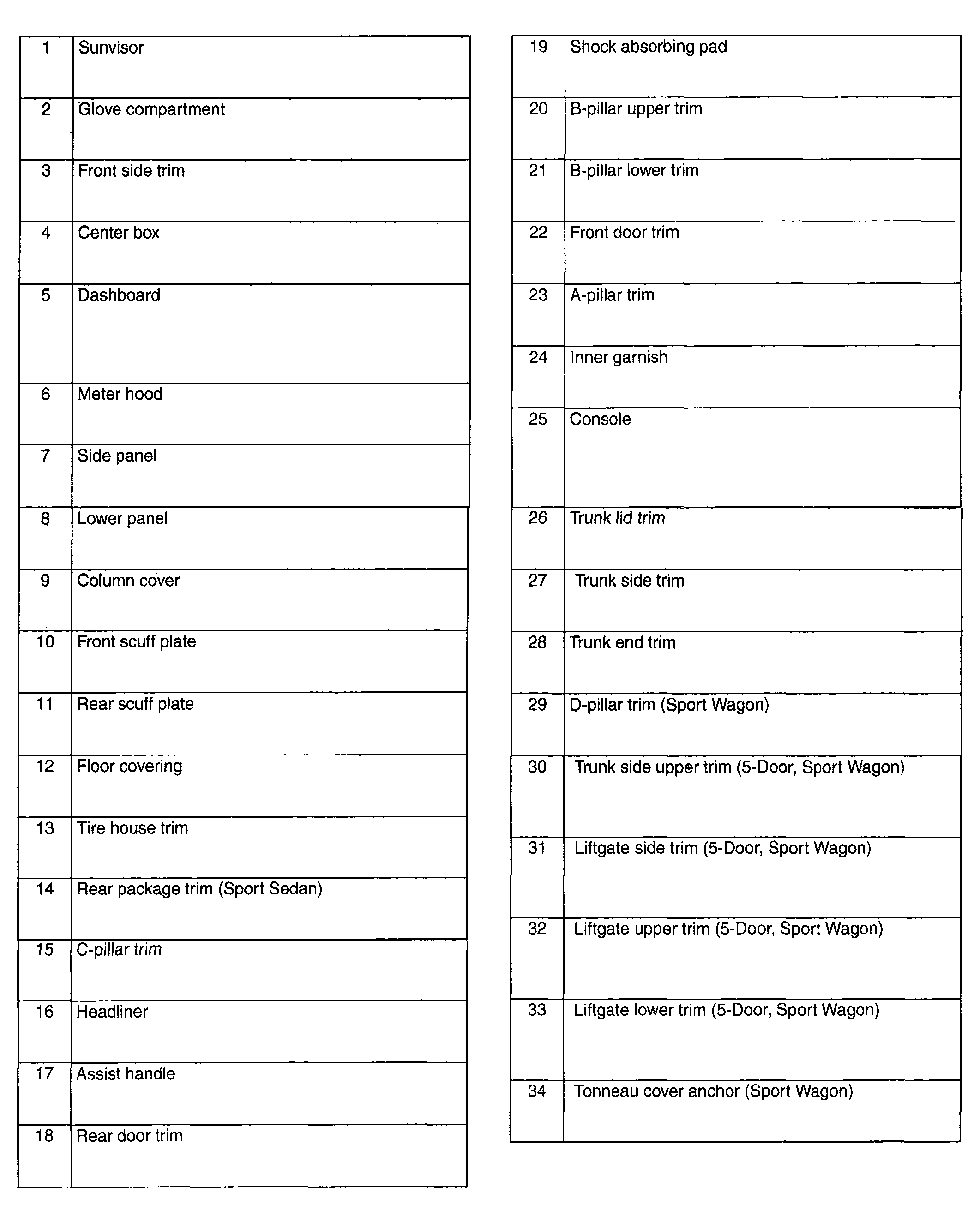

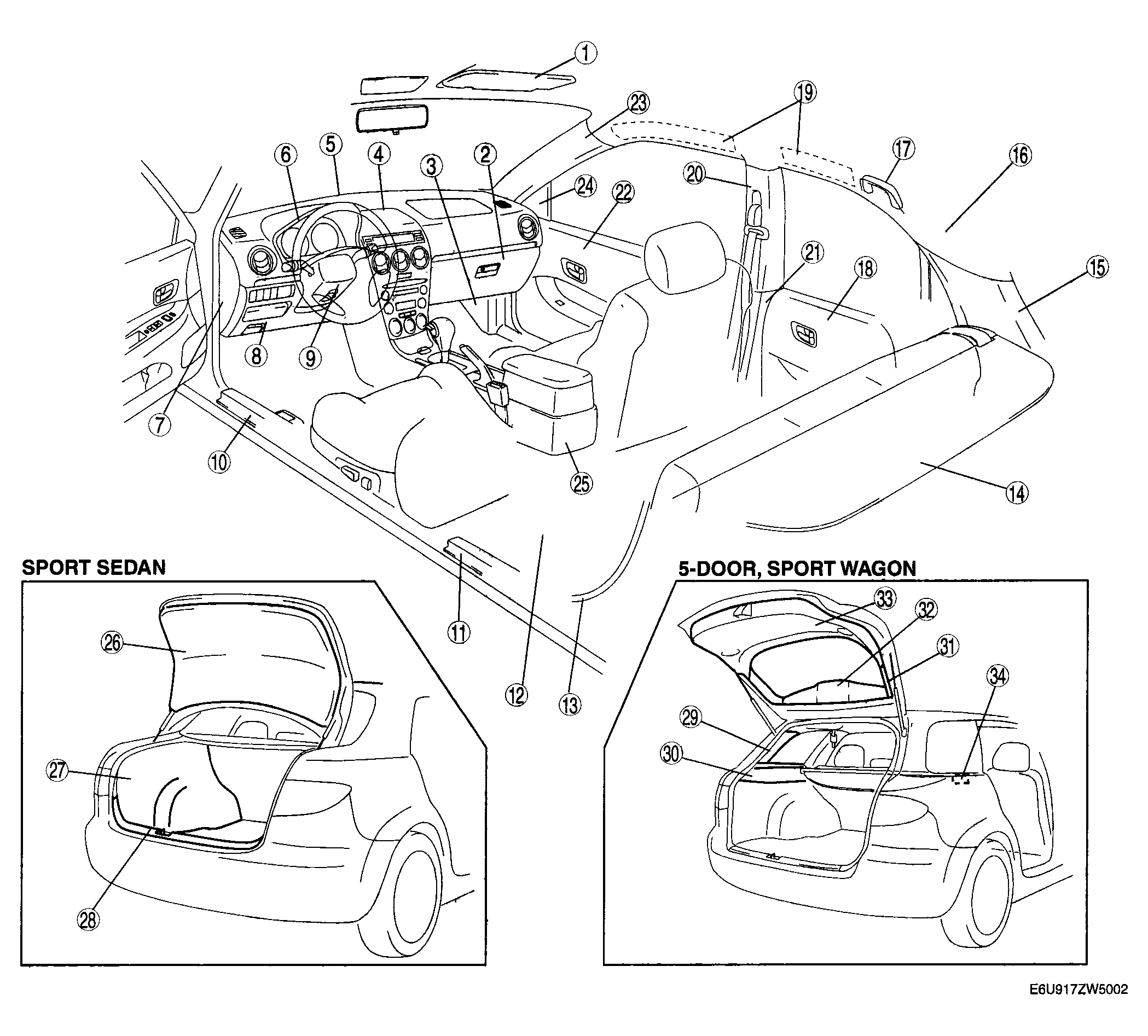

Fig 1: Interior Trim Component Location (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Interior Trim Component Location (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
