Inner Garnish Removal/Installation

  1. Disconnect the negative battery cable.
  2. Pull the inner garnish outward and detach clips A and pins B.
  3. Remove the inner garnish.
  4. Disconnect the front tweeter connector.
  5. Install in the reverse order of removal.

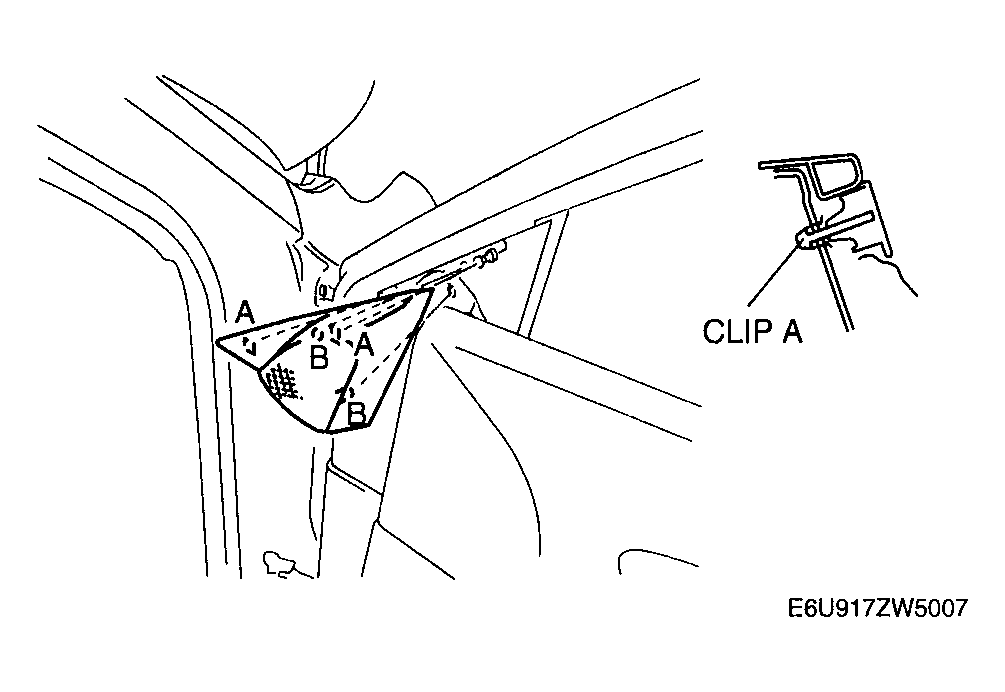

    Fig 1: Inner Garnish Clips And Pins
    G04327449Courtesy of MAZDA MOTORS CORP.
