Front Scuff Plate Removal/Installation

  1. Pull the front scuff plate upward, disengage clips B, pins C, D and tabs E from the body, and remove the front scuff plate.
  2. Install in the reverse order of removal.

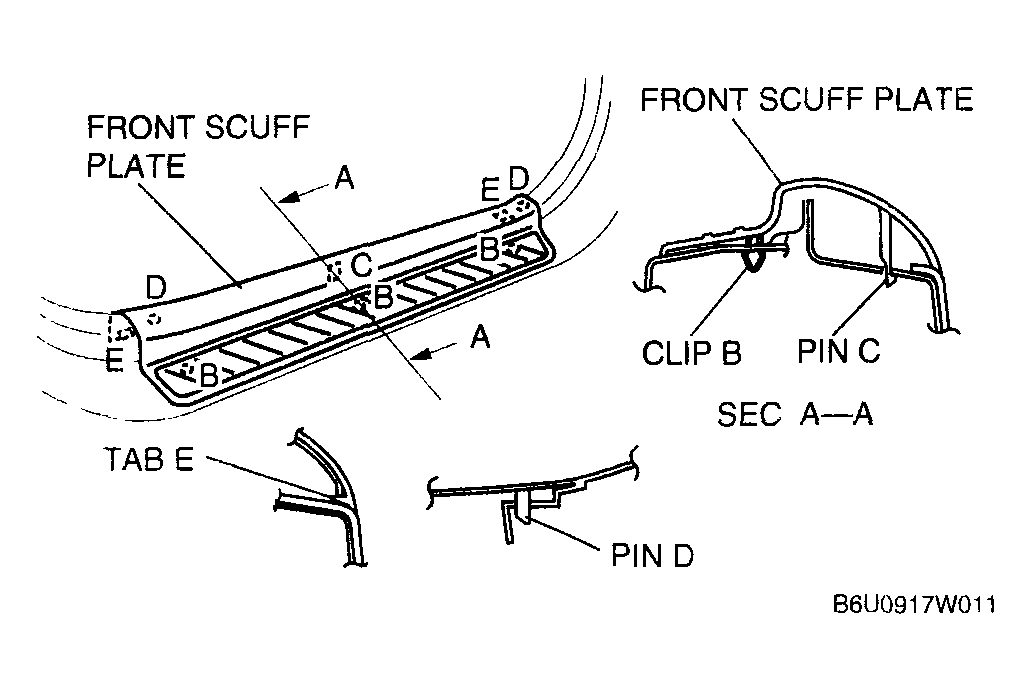

    Fig 1: Front Scuff Plate
    G04327461Courtesy of MAZDA MOTORS CORP.
