Audio Amplifier Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front seat (driver-side). (See FRONT SEAT REMOVAL/INSTALLATION [L3 WITH TC]. ) (See FRONT SEAT REMOVAL/INSTALLATION [EXCEPT L3 WITH TC]. )
  3. Remove in the order indicated in the table.

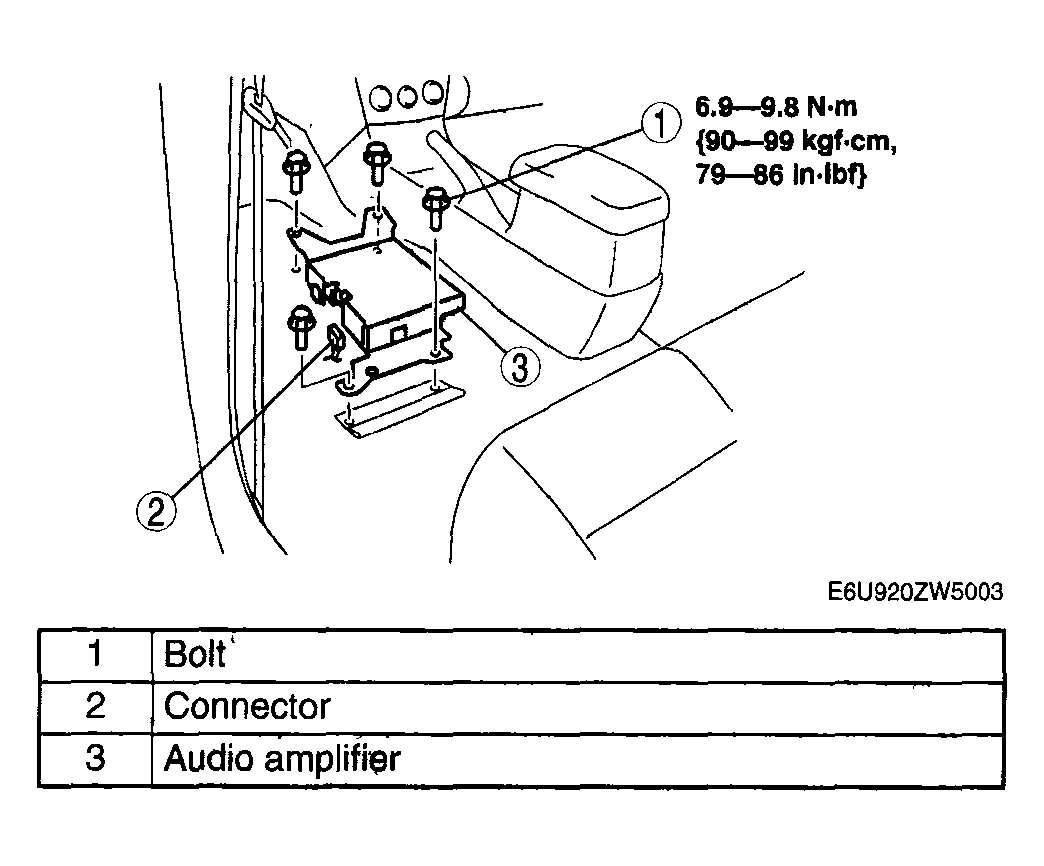

    Fig 1: Audio Amplifier & Torque Specification
    G04327657Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
