Symptom Troubleshooting Wiring Diagram

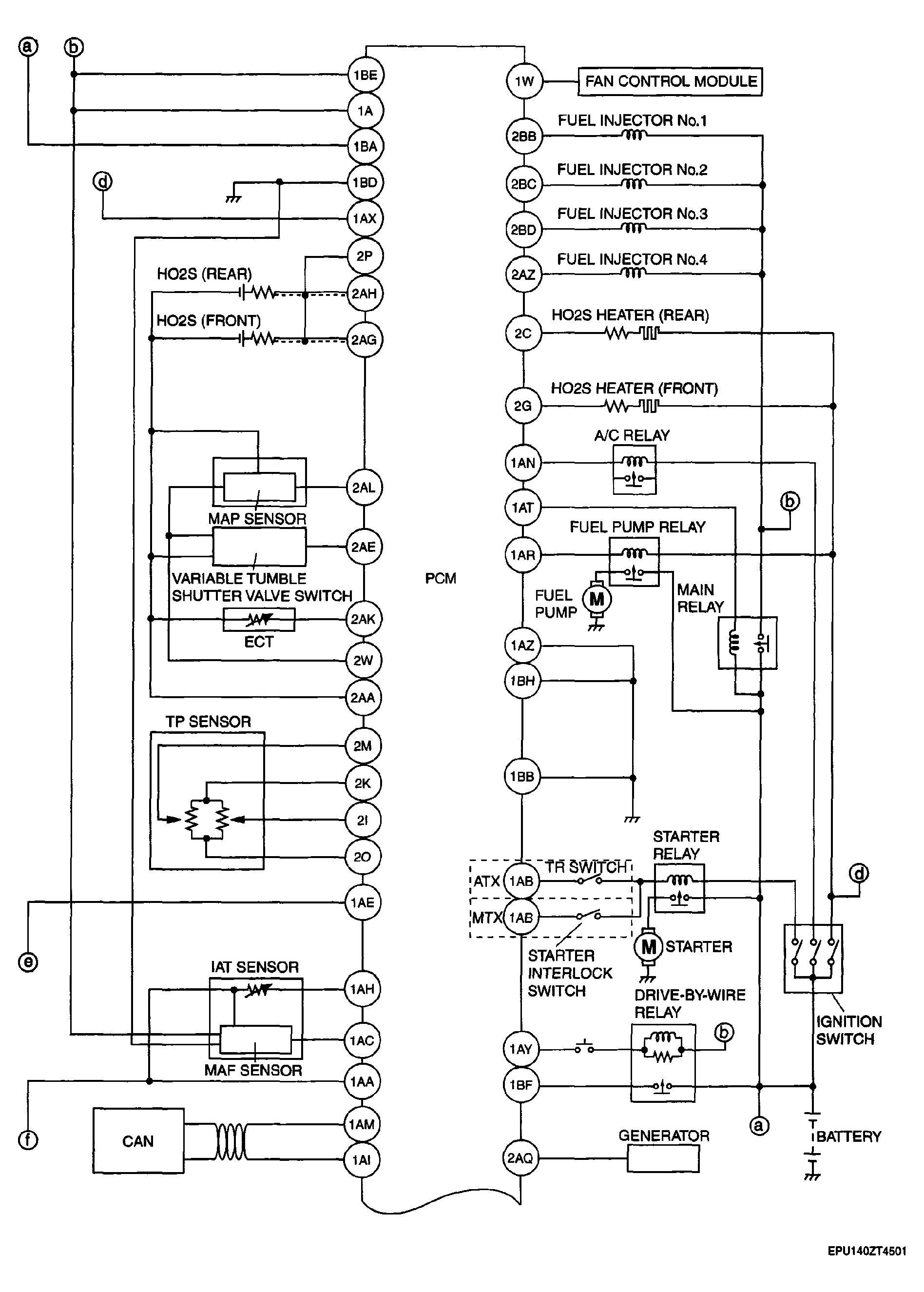

Fig 1: Symptom Troubleshooting Wiring Diagram [L3] (1 Of 2)
G04315751Courtesy of MAZDA MOTORS CORP.

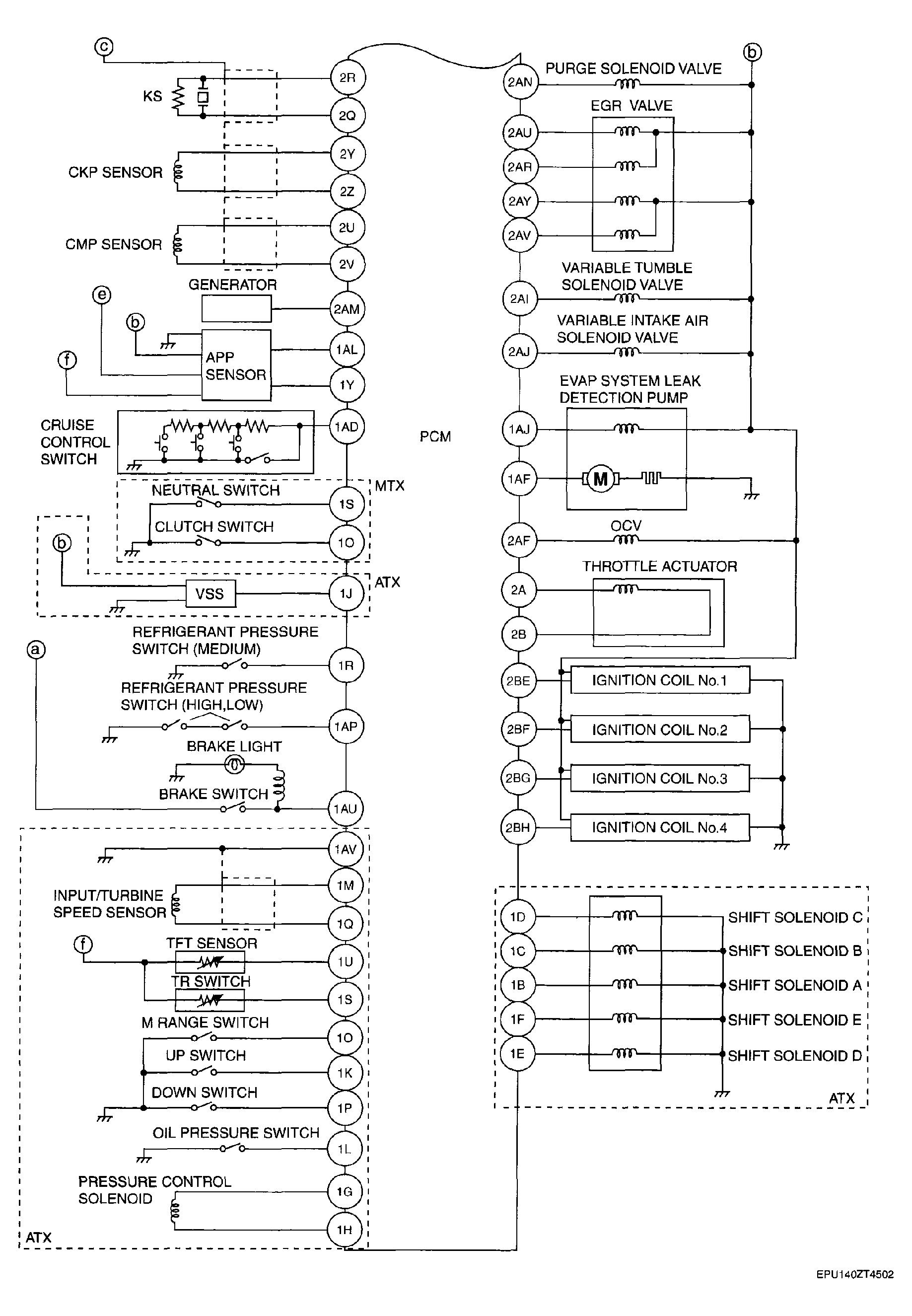

Fig 2: Symptom Troubleshooting Wiring Diagram [L3] (2 Of 2)
G04315752Courtesy of MAZDA MOTORS CORP.
