Total Toe-in Adjustment

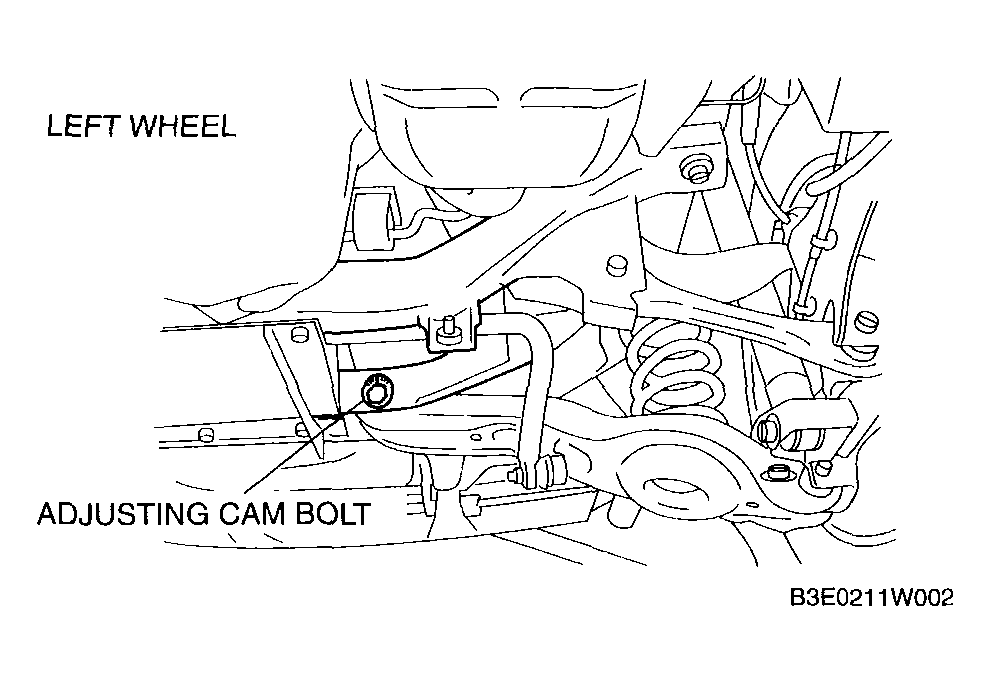

- Loosen the securing nut of the adjusting cam bolt.
- Rotate the adjusting cam bolt in either direction to adjust the toe-in.TOE-IN ADJUSTMENT DIRECTION
Left wheel Right wheel Toe-out direction Counterclockwise Clockwise Toe-in direction Clockwise Counterclockwise - Tighten the nut.
Tightening torque
80-105 N.m {8.2-10.7 kgf.m, 59.1-77.4 ft.lbf}
