No-Load Test

  1. Verify that the battery is fully charged.
  2. Connect the starter, battery, and a tester as shown in the figure.
  3. Operate the starter and verify that it rotates smoothly.
    • If the starter does not rotate smoothly, inspect the starter unit.

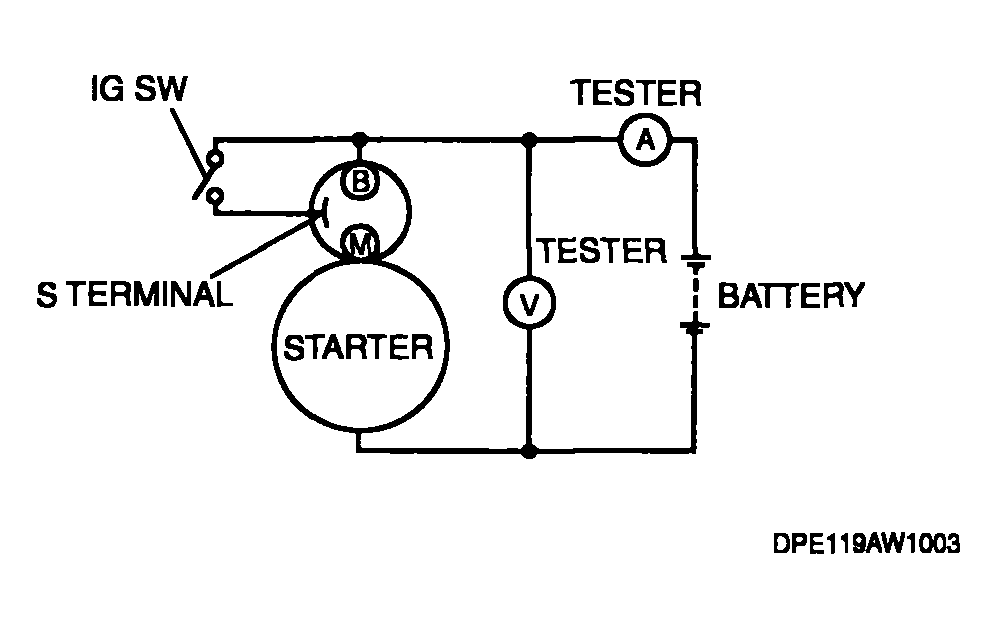

      Fig 1: Connecting Starter, Battery, And Tester
      G04313814Courtesy of MAZDA MOTORS CORP.
  4. Measure the voltage and current while the starter is operating.
    • If not within the specification, replace the starter.
      VOLTAGE AND CURRENT CHART

      Item
      Voltage (V) Current (A)
      11 90 or less
