Exhaust Manifold Installation Note

  1. Tighten the exhaust manifold installation nuts in the order shown in the figure.

    Tightening torque

    43-64 N.m {4.4-6.5 kgf.m, 32-47 ft.lbf}

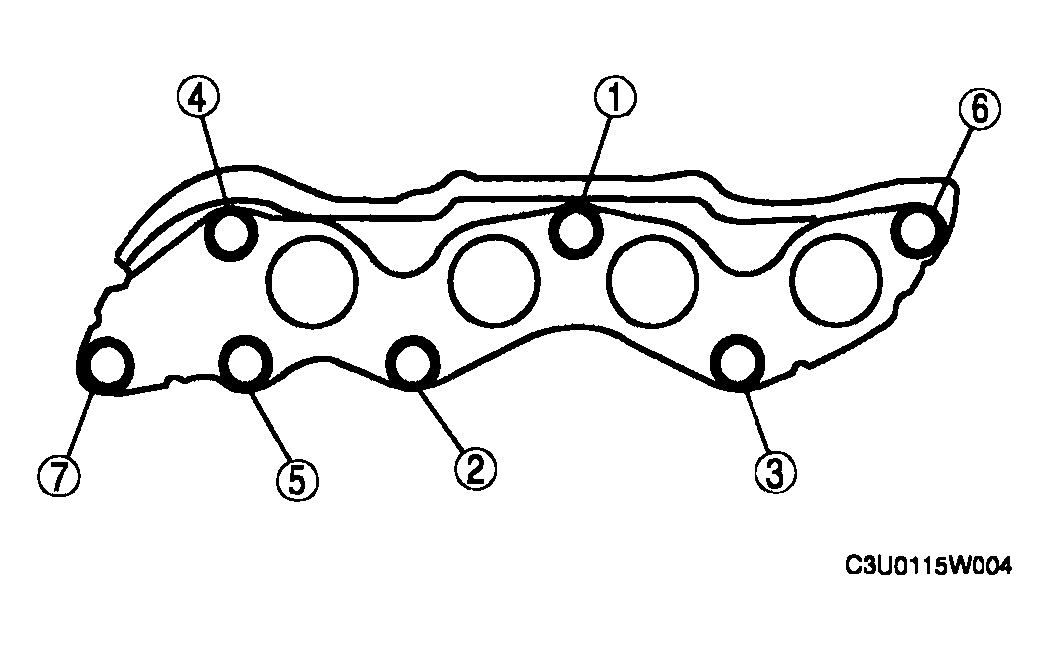

    Fig 1: Exhaust Manifold Tightening Sequence
    G04313680Courtesy of MAZDA MOTORS CORP.
