Trunk Lid Key Cylinder Switch Inspection

  1. Inspect for continuity between the trunk lid key cylinder push switch terminals.
    • If not as specified, replace the trunk lid key cylinder.

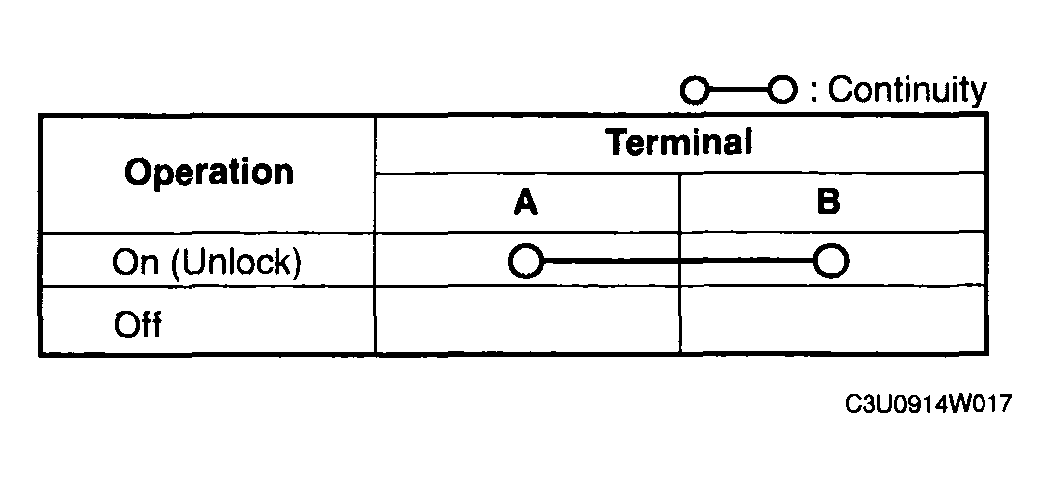

      Fig 1: Trunk Lid Key Cylinder Push Switch Terminals Continuity Chart
      G04315189Courtesy of MAZDA MOTORS CORP.
      Fig 2: Inspecting For Continuity Between Trunk Lid Key Cylinder Push Switch Terminals
      G04315190Courtesy of MAZDA MOTORS CORP.
