Trunk Lid Key Cylinder Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION ).
  3. Detach the rod from the trunk lid key cylinder.
  4. Disconnect the trunk lid key cylinder connector.
  5. Remove the nuts, then remove the trunk lid key cylinder.
  6. Install in the reverse order of removal. cylinder

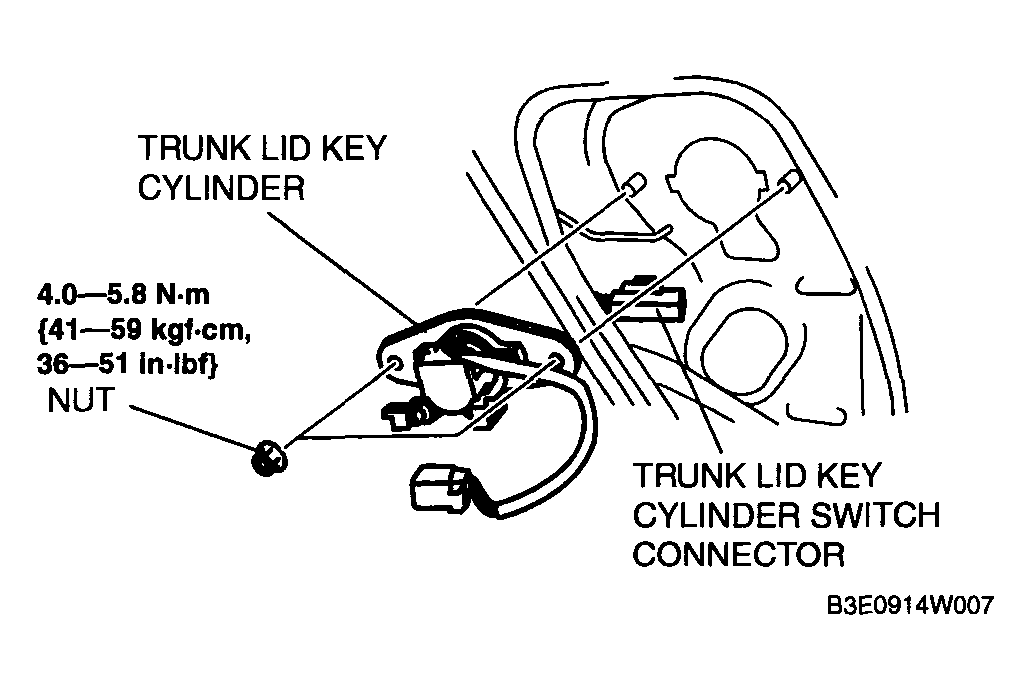

    Fig 1: Trunk Lid Key Cylinder & Torque Specification
    G04315188Courtesy of MAZDA MOTORS CORP.
