Liftgate Lock Actuator Inspection

  1. Apply battery positive voltage and connect ground to the corresponding liftgate lock actuator terminals, and inspect the liftgate lock actuator operation.
    • If not as specified, replace the liftgate latch and lock actuator.
LIFTGATE LOCK ACTUATOR OPERATION

Lock actuator operation Connection
B+  GND
Lock A B
Unlock B A

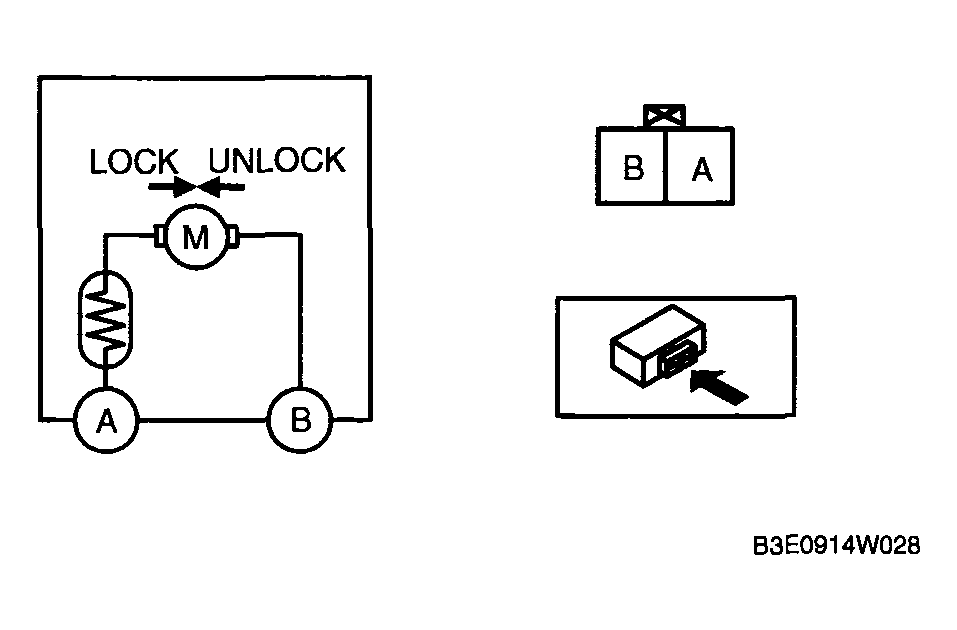

Fig 1: Identifying Liftgate Lock Actuator Circuit And Terminals
G04315196Courtesy of MAZDA MOTORS CORP.
