Hood Latch Switch Inspection

When inspecting the latch, press the latch lever using a flathead screwdriver or a similar tool.

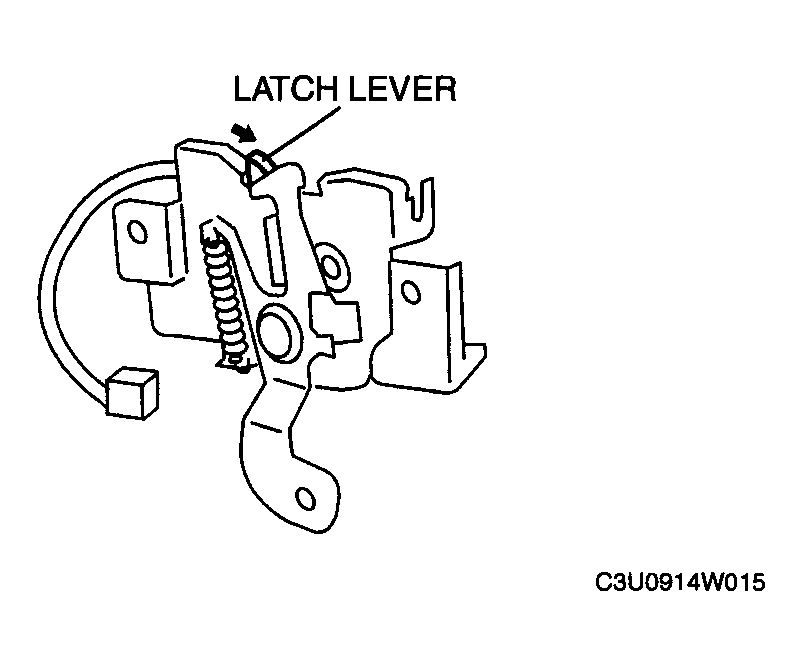

Fig 1: Identifying Latch Lever
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the hood latch switch terminals.
- If not as specified, replace the hood latch.

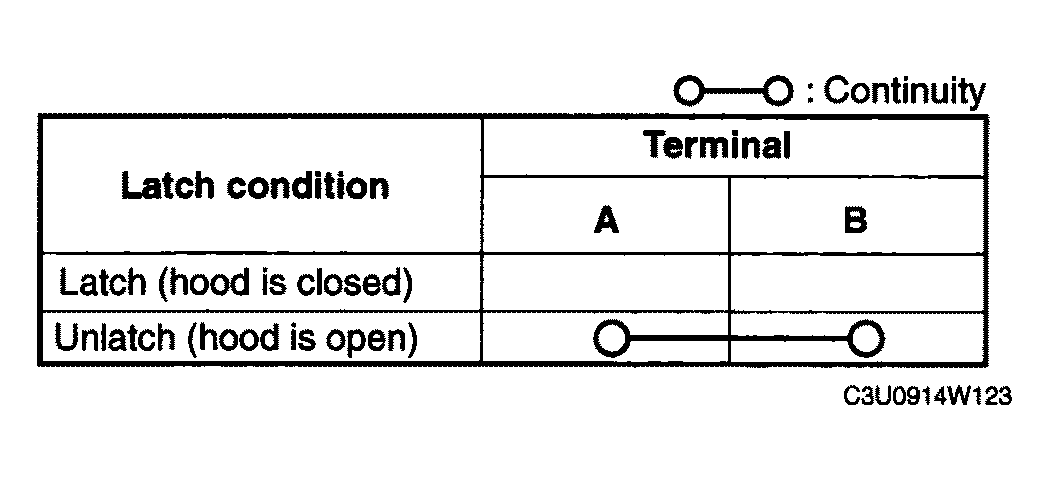

  Fig 2: Hood Latch Switch Terminals Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

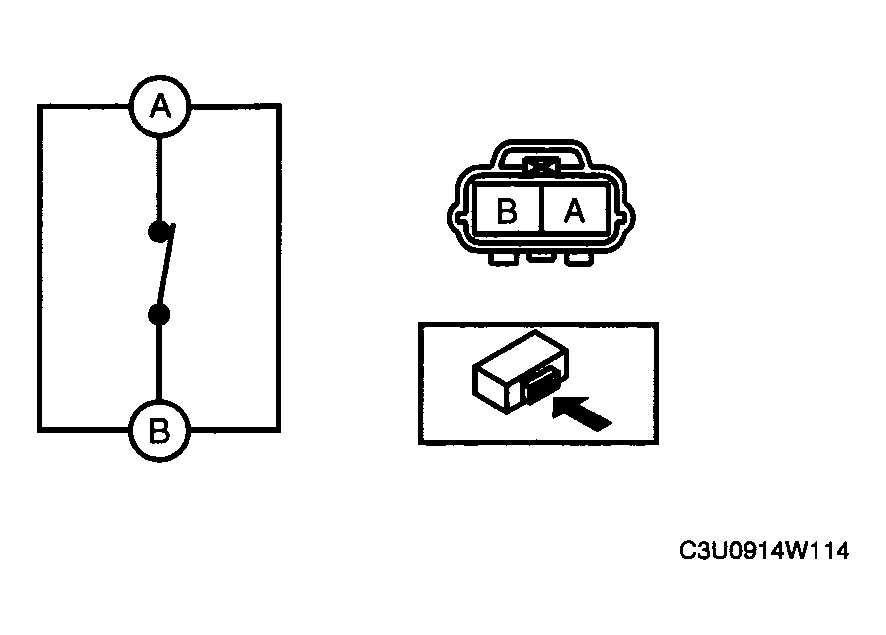

  Fig 3: Inspecting For Continuity Between Hood Latch Switch Terminals
  Courtesy of MAZDA MOTORS CORP.
