Front Door Latch Switch Inspection

When inspecting the latch, press the latch lever using a flathead screwdriver or a similar tool.

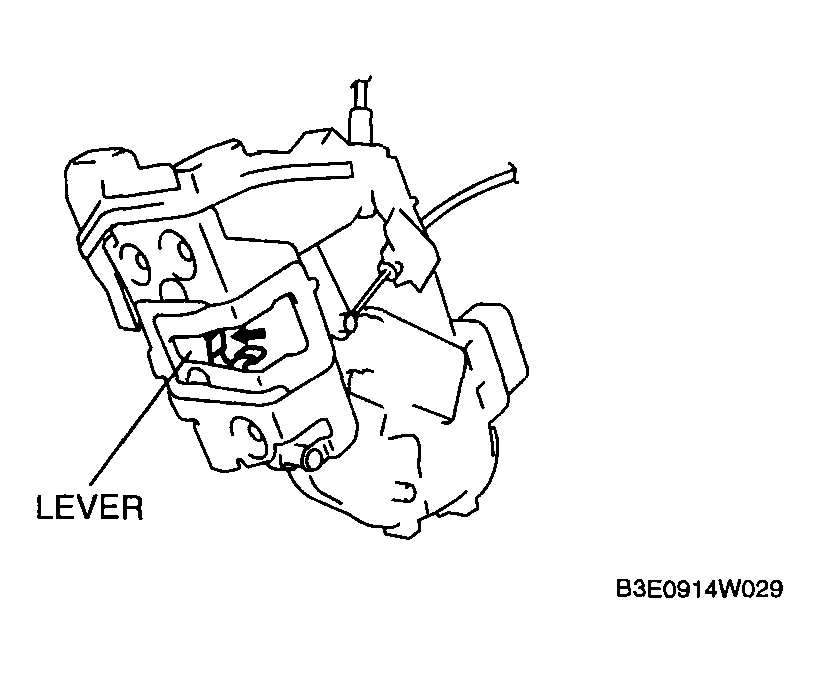

Fig 1: Identifying Latch Lever
Courtesy of MAZDA MOTORS CORP.
Inspect for continuity between the front door latch switch terminals.
- If not as specified, replace the front door latch and lock actuator.

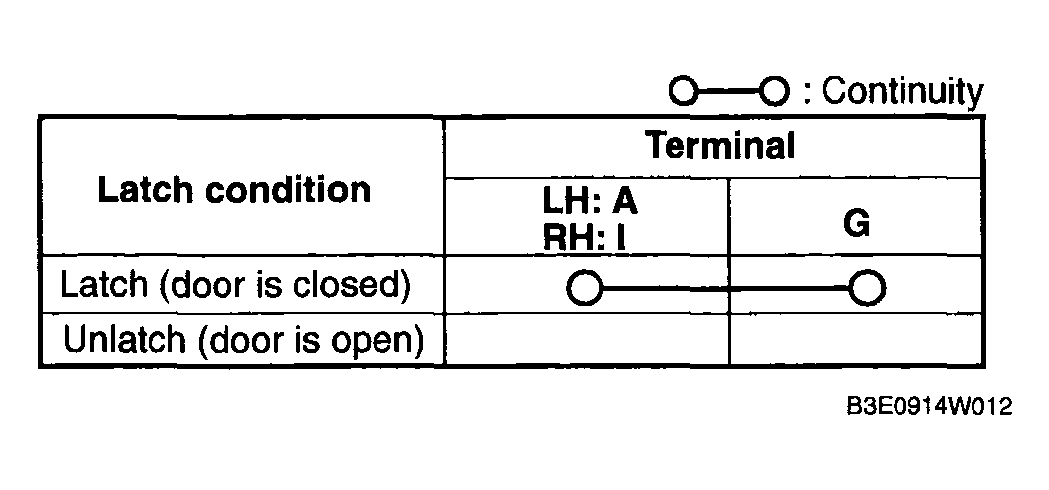

  Fig 2: Front Door Latch Switch Terminals Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

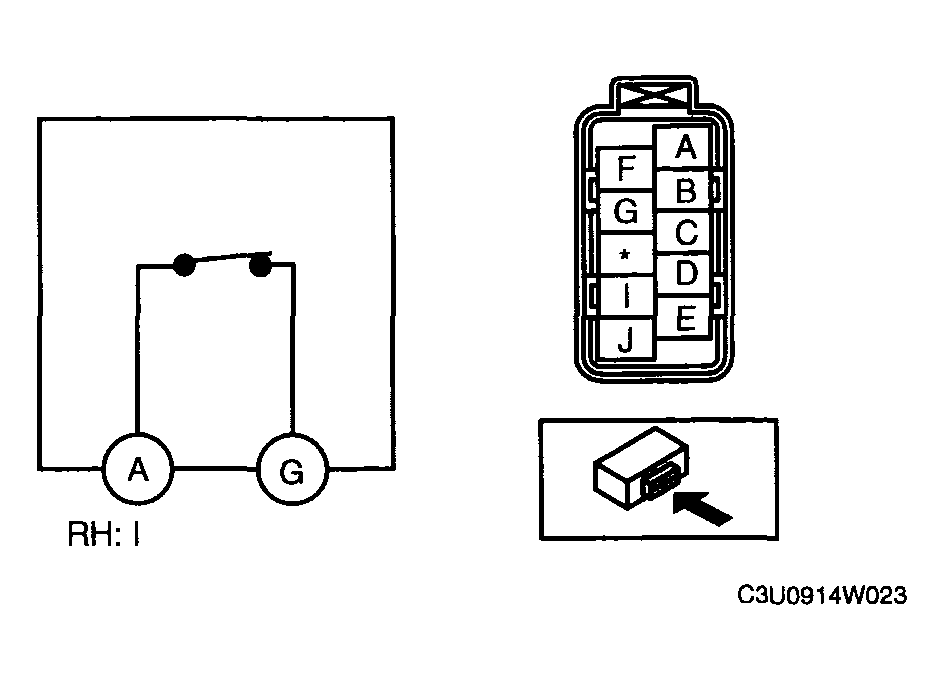

  Fig 3: Inspecting For Continuity Between Front Door Latch Switch Terminals
  Courtesy of MAZDA MOTORS CORP.
