Door Lock Switch Inspection

  1. Inspect for continuity between the door lock switch terminals using an ohmmeter.
    • If not as specified, replace the door lock switch.

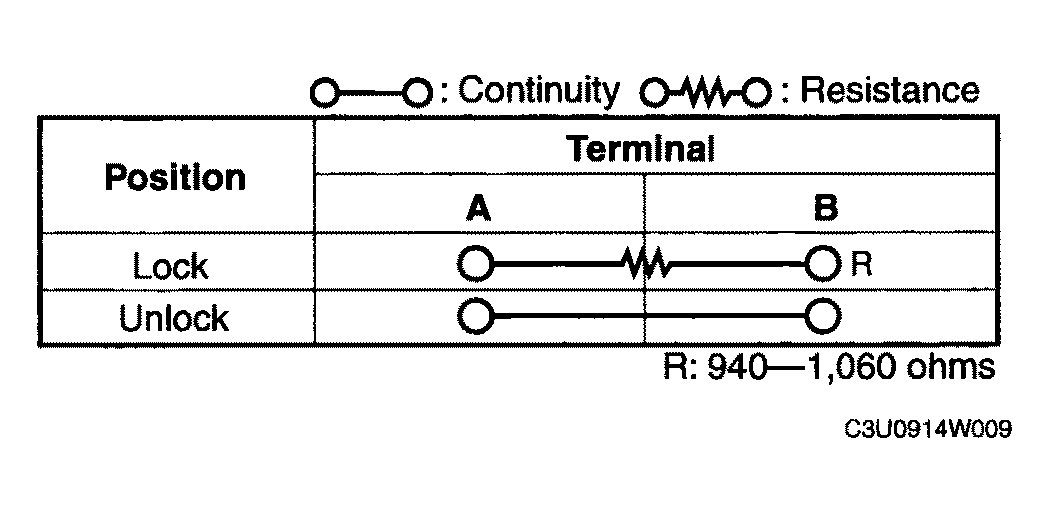

      Fig 1: Door Lock Switch Terminals Continuity Chart
      G04315165Courtesy of MAZDA MOTORS CORP.

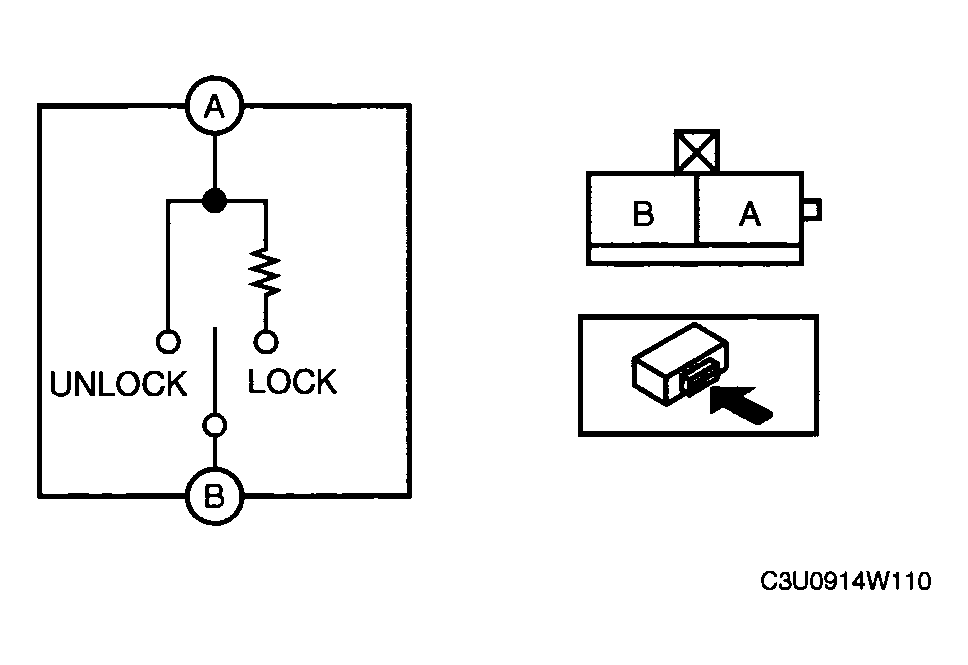

      Fig 2: Inspecting For Continuity Between Door Lock Switch Terminals
      G04315166Courtesy of MAZDA MOTORS CORP.
