Front Buckle Removal/Installation

  1. Turn the ignition switch to the LOCK position.
  2. Disconnect the negative battery cable.
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION ).
  4. Detach the tab as shown in the figure and remove the connector from the front seat connector.

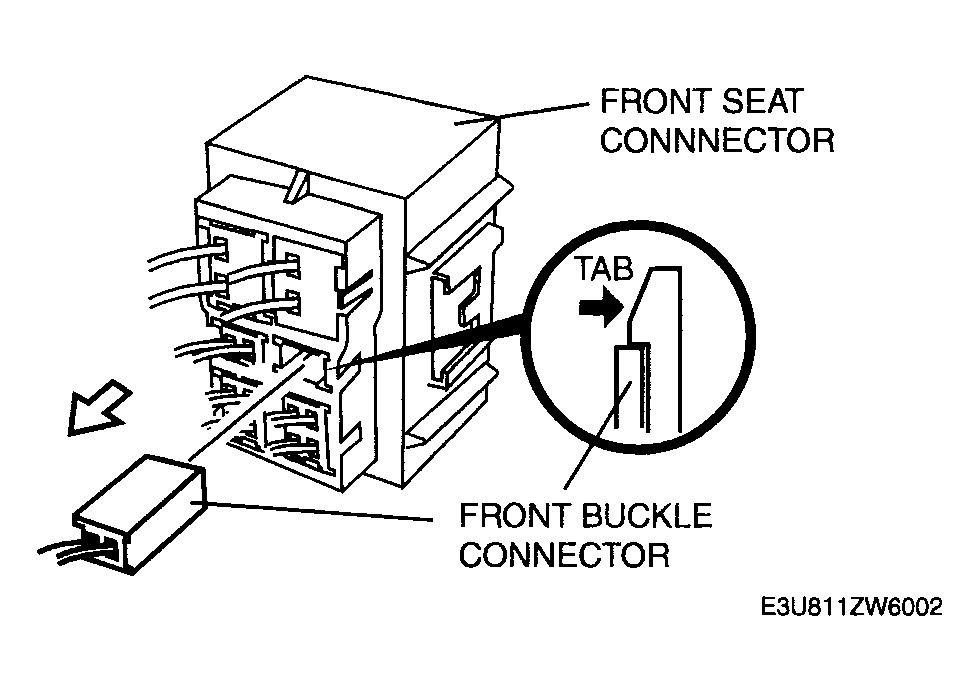

    Fig 1: Front Seat & Buckle Connector
    G04314933Courtesy of MAZDA MOTORS CORP.
  5. Remove in the order indicated in the table.

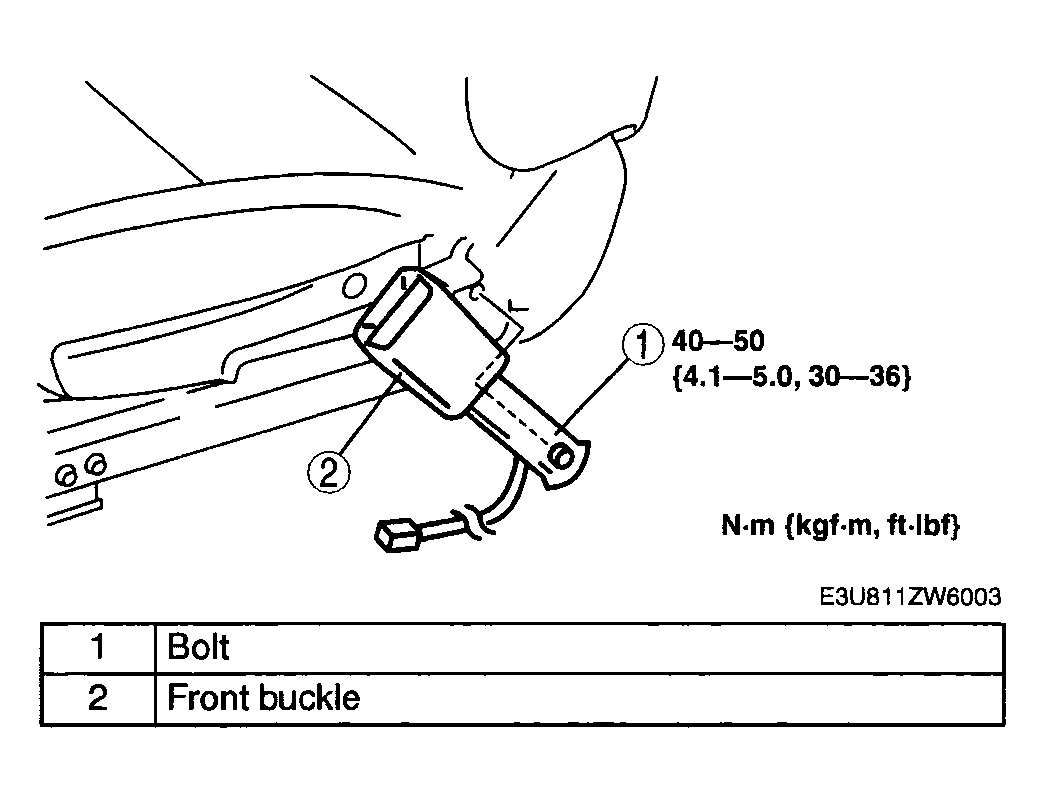

    Fig 2: Front Seat Belt Buckle & Torque Specification
    G04314934Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
