California Emission Regulation Applicable Model: Notes
- Follow "BEFORE SERVICE PRECAUTION" before performing any work operations to prevent fuel from spilling from the fuel system. (See BEFORE SERVICE PRECAUTION ).
- Disconnect the negative battery cable.
- Remove the fuel tank. (See FUEL TANK REMOVAL/INSTALLATION ).
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Inspect all related parts by performing "AFTER SERVICE PRECAUTION". (See
AFTER SERVICE PRECAUTION ).RELEASE CONNECTOR SPECIFICATION

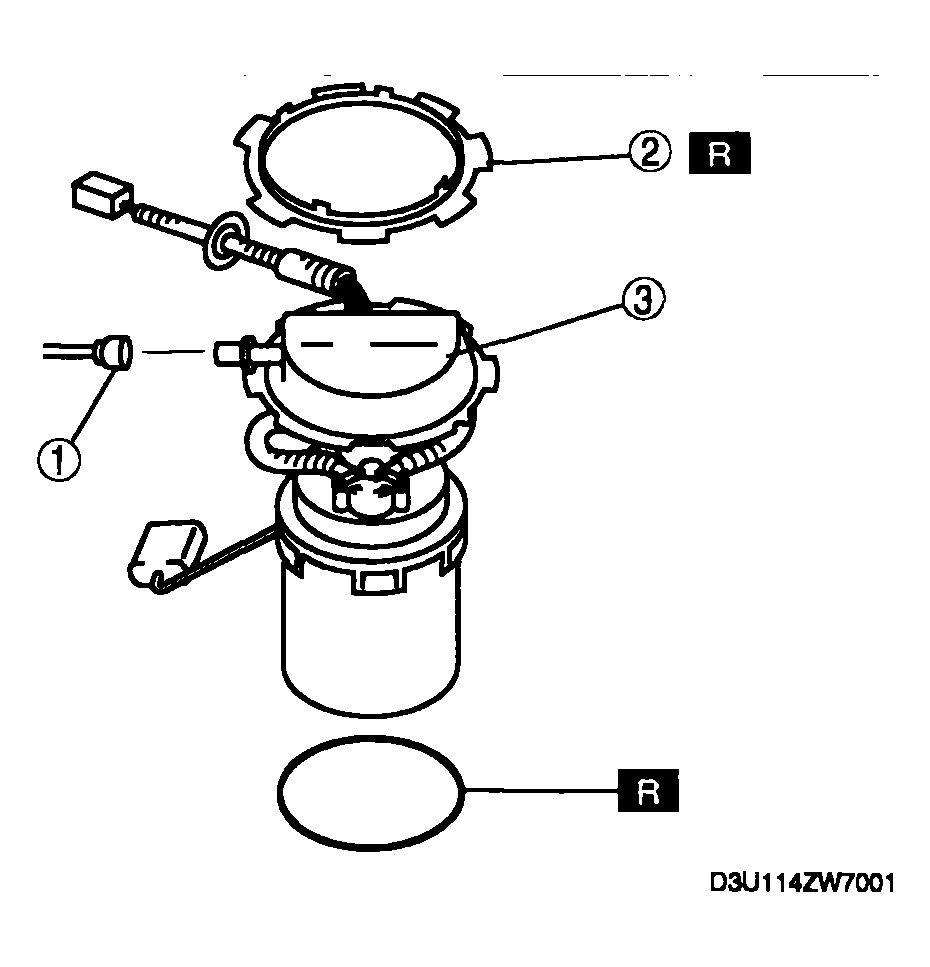

1 Quick release connector
(See TYPE B REMOVAL , TYPE B INSTALLATION ).2 Retainer ring
(See RETAINER RING REMOVAL NOTE ).
(See RETAINER RING INSTALLATION NOTE ).3 Fuel pump unit
(See FUEL LEAKAGE INSPECTION AFTER PUMP UNIT INSTALLATION ).
