California Emission Regulation Applicable Model With LF MTX, L3

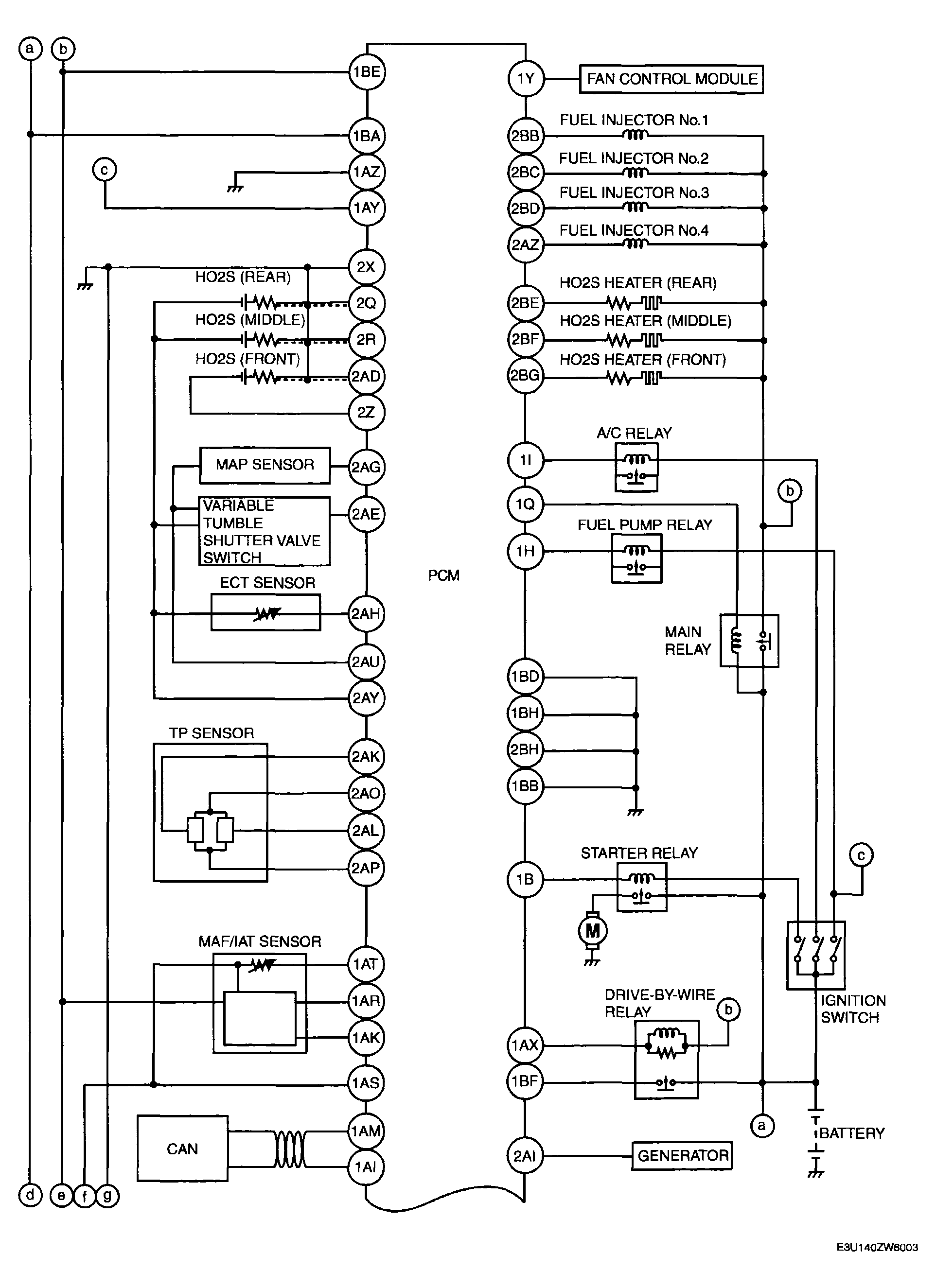

Fig 1: Control System Wiring Diagram [LF, L3] - California Emission Regulation Applicable Model With LF MTX, L3 (1 Of 2)
G04313841Courtesy of MAZDA MOTORS CORP.

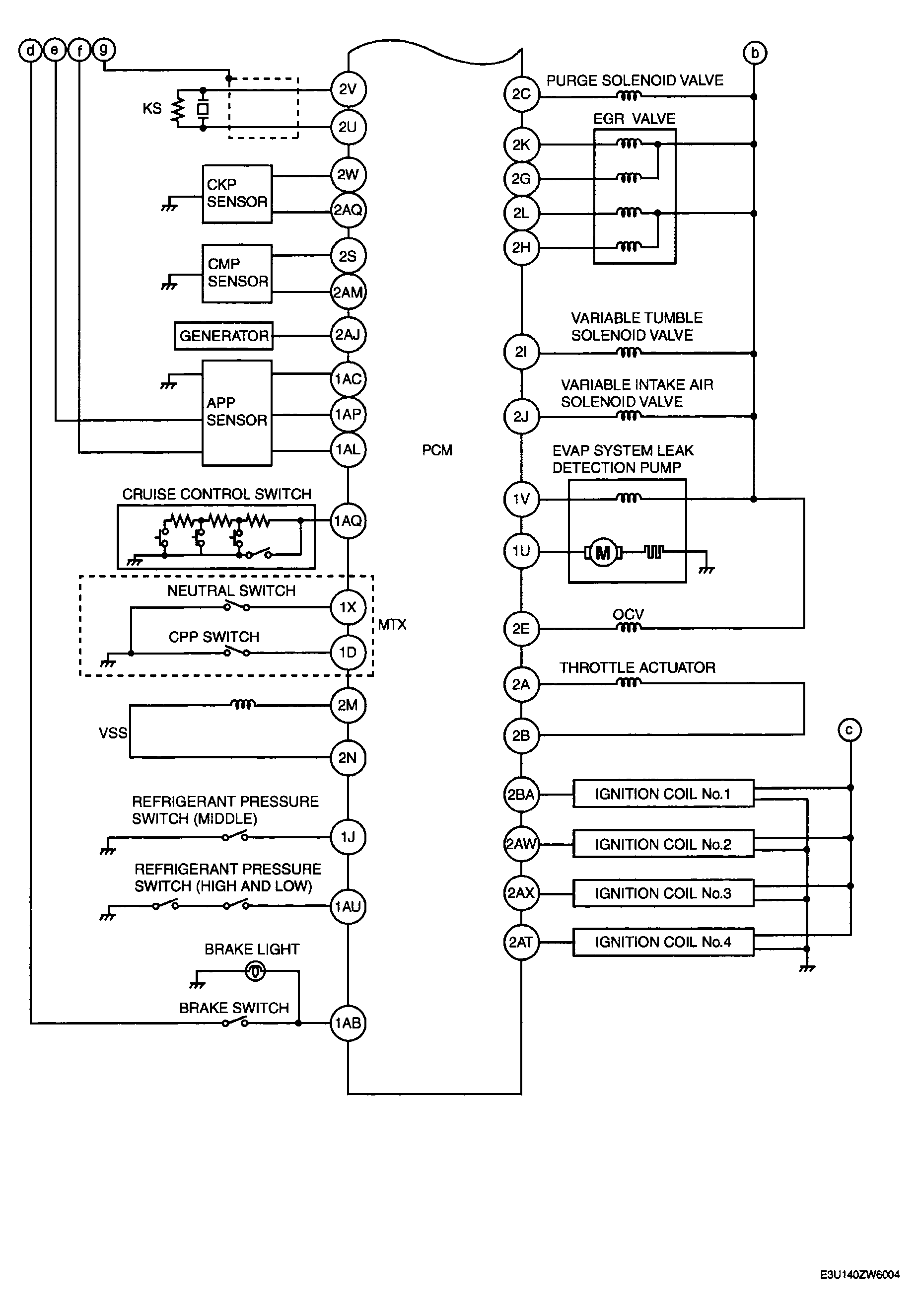

Fig 2: Control System Wiring Diagram [LF, L3] - California Emission Regulation Applicable Model With LF MTX, L3 (2 Of 2)
G04313842Courtesy of MAZDA MOTORS CORP.
