Home >> Mazda >> 2006 >> 3 i, 2.0 F, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Control System Wiring Diagram >> California Emission Regulation Applicable Model With LF ATX

California Emission Regulation Applicable Model With LF ATX

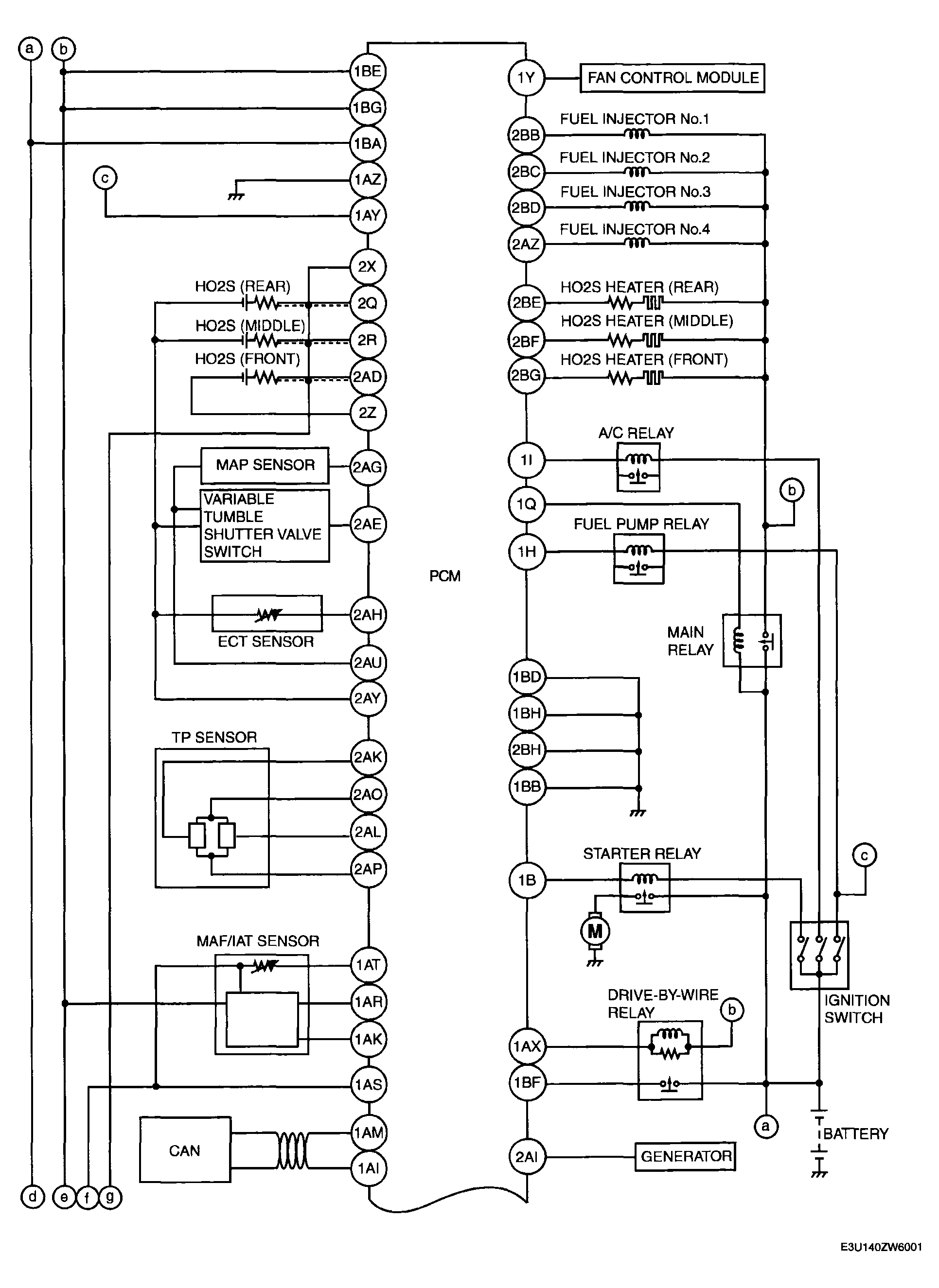

Fig 1: Control System Wiring Diagram [LF, L3] - California Emission Regulation Applicable Model With LF ATX (1 Of 2)
G04313839Courtesy of MAZDA MOTORS CORP.

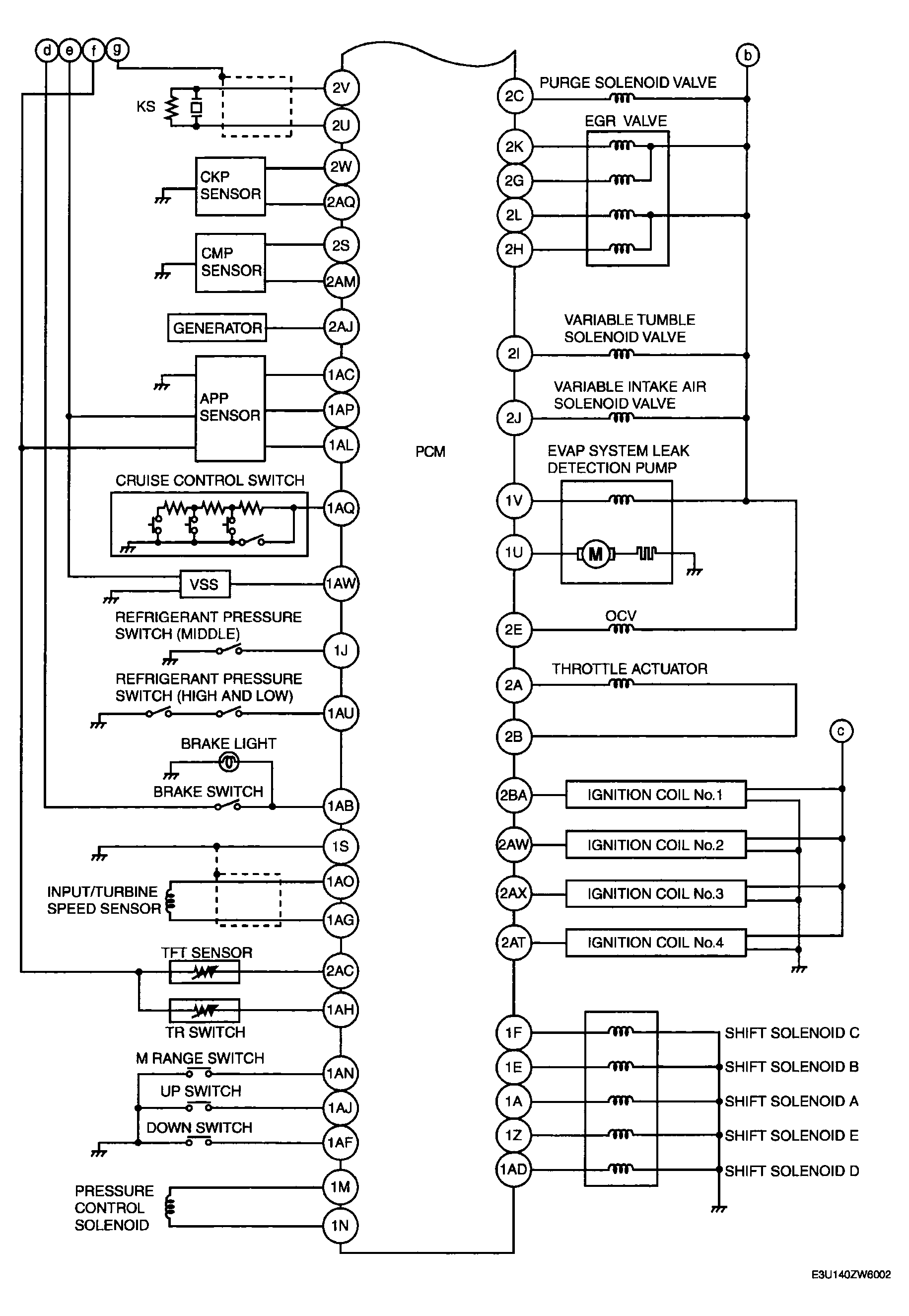

Fig 2: Control System Wiring Diagram [LF, L3] - California Emission Regulation Applicable Model With LF ATX (2 Of 2)
G04313840Courtesy of MAZDA MOTORS CORP.
