Circuit Open/Short Inspection: Notes

Fig 1: Identifying CPP Switch Harness Side Connector
G04313880Courtesy of MAZDA MOTORS CORP.

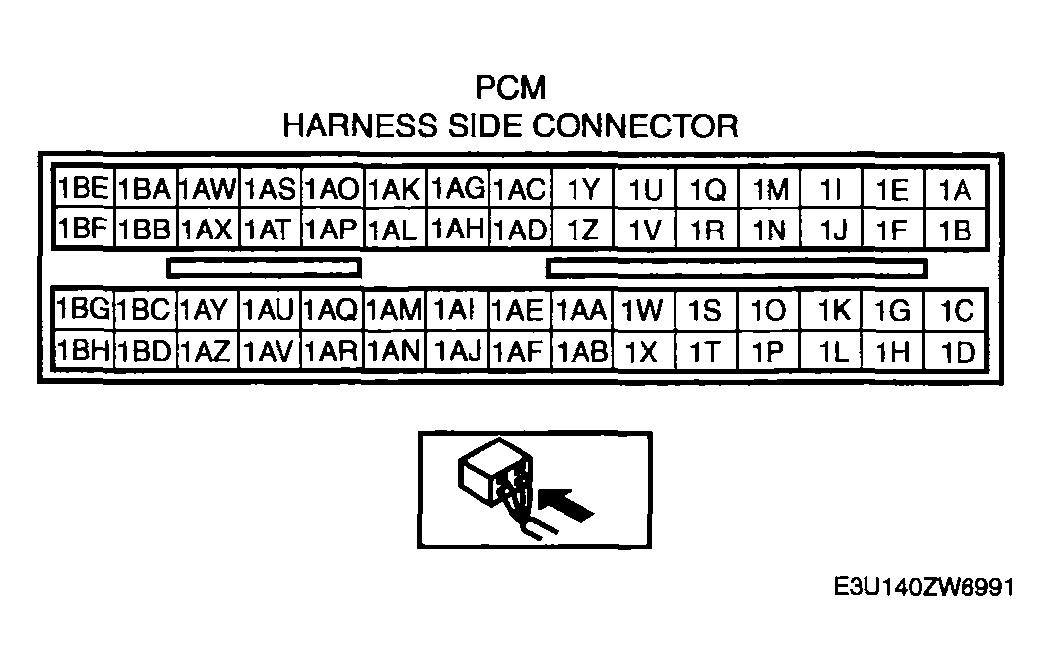

Fig 2: PCM Connector Terminal Identification
G04313881Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.
  2. Disconnect the CPP switch connector.
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
