Starter Disassembly/Assembly

  1. Disassemble in the order indicated in the table.
  2. Assemble in the reverse order of disassembly.

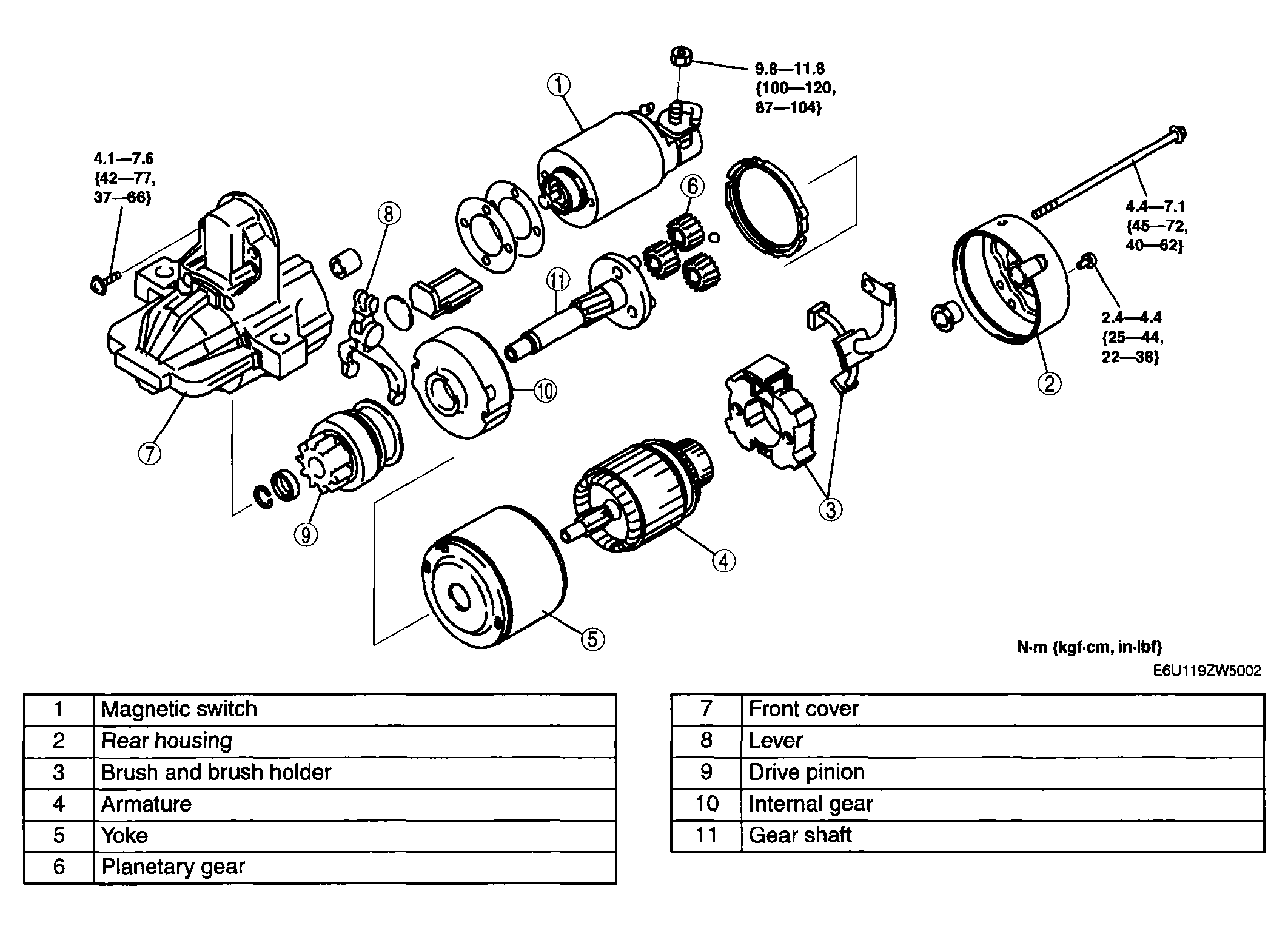

    Fig 1: Exploded View Of Starter (LF, L3) & Torque Specification
    G04313830Courtesy of MAZDA MOTORS CORP.
