Regulator Handle Removal

  1. Using a cloth, remove the regulator handle installation clip and remove the regulator handle.

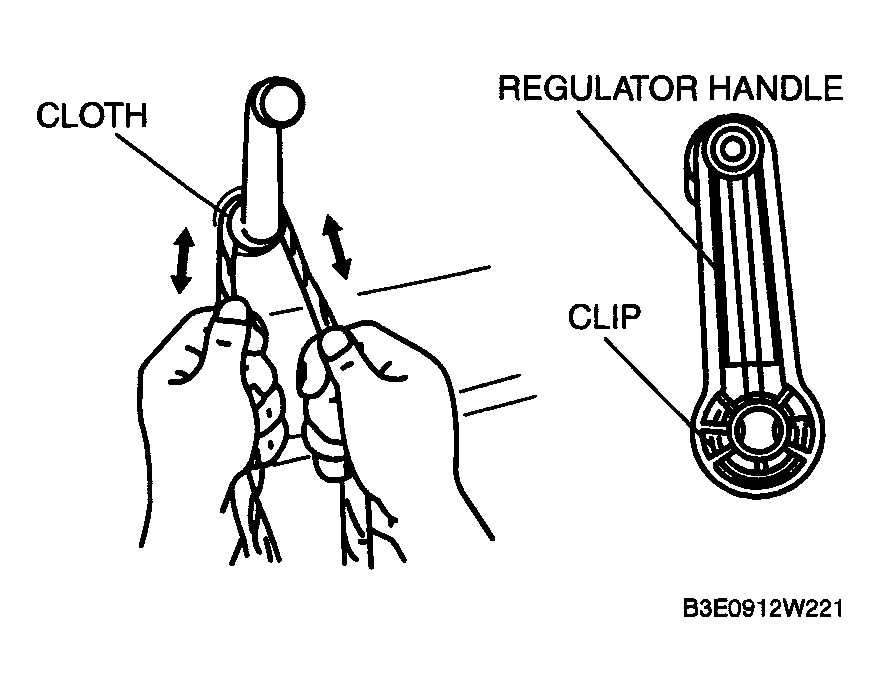

    Fig 1: Removing Regulator Handle Using Cloth
    G04315052Courtesy of MAZDA MOTORS CORP.
