Power Window Sub-Switch Inspection

  1. Verify continuity as indicated in the table.
    • If not as indicated in the table, replace the power window sub-switch.

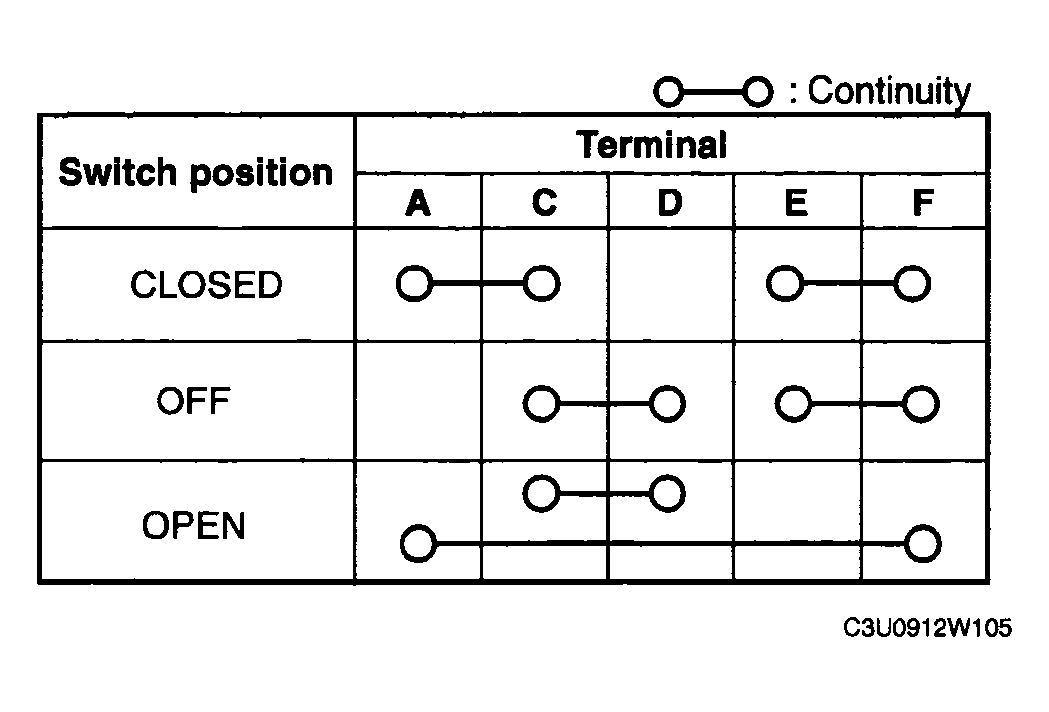

      Fig 1: Power Window Sub-Switch Continuity Table
      G04315061Courtesy of MAZDA MOTORS CORP.
      Fig 2: Identifying Power Window Sub-Switch Connector Terminal
      G04315062Courtesy of MAZDA MOTORS CORP.
