Ignition Switch Inspection

Verify that the continuity between the ignition switch terminals is as indicated in the table.
- If not as indicated in the table, replace the ignition switch.

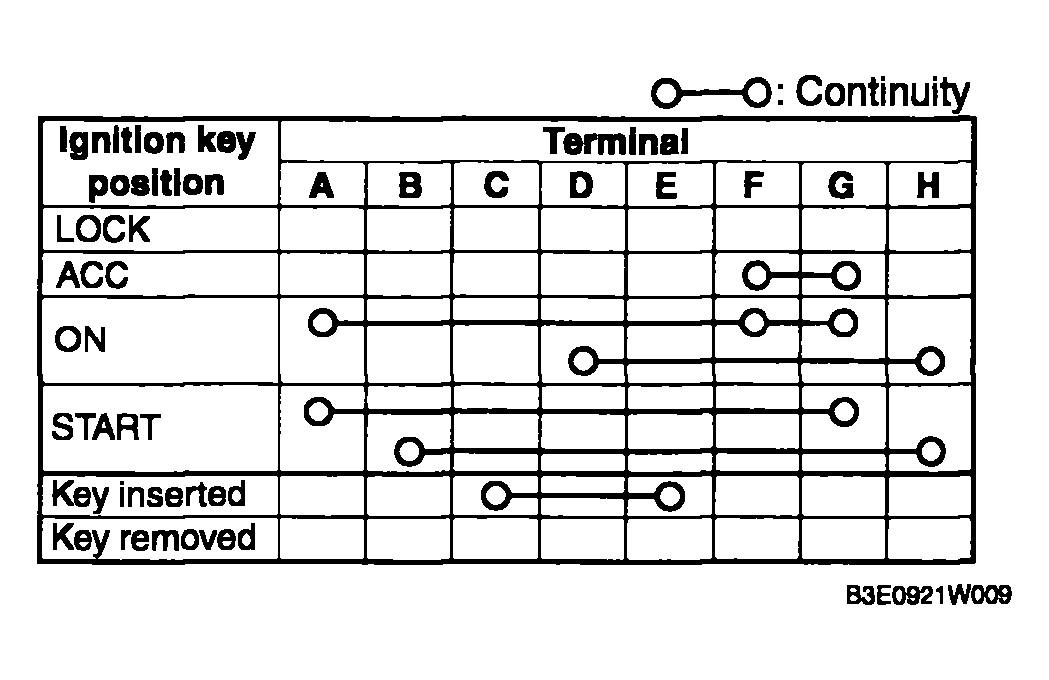

  Fig 1: Checking Ignition Switch Continuity
  Courtesy of MAZDA MOTORS CORP.

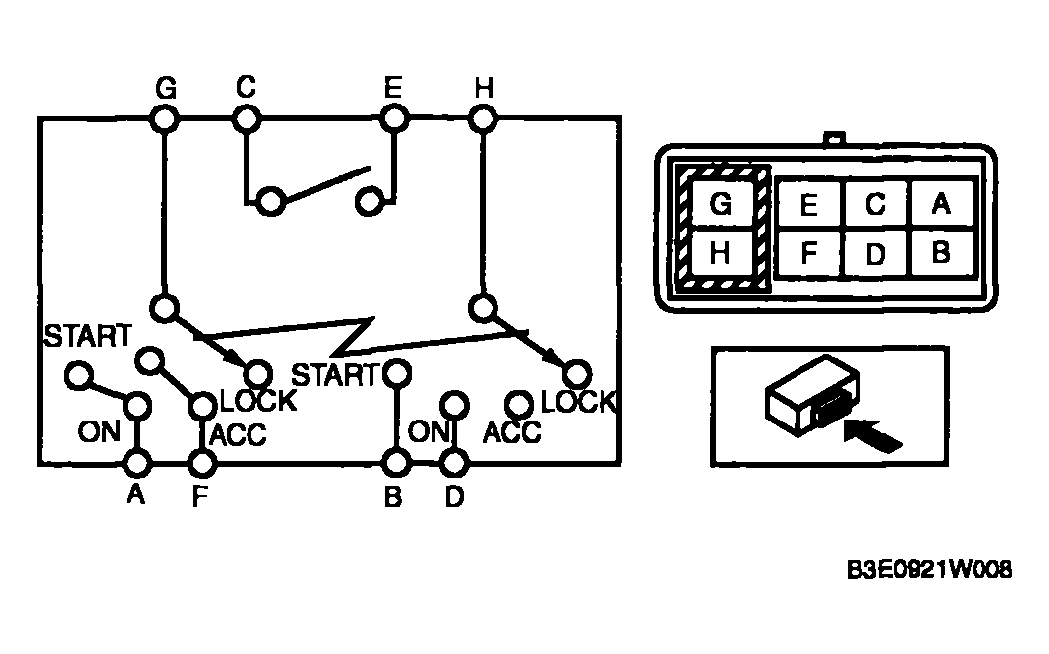

  Fig 2: Identifying Ignition Switch Terminals
  Courtesy of MAZDA MOTORS CORP.
