Outer Mirror Glass Assembly Note

  1. Press area A of the mirror glass into the base to attach pin A.
  2. Press areas B of the mirror glass into the base to attach pins B.

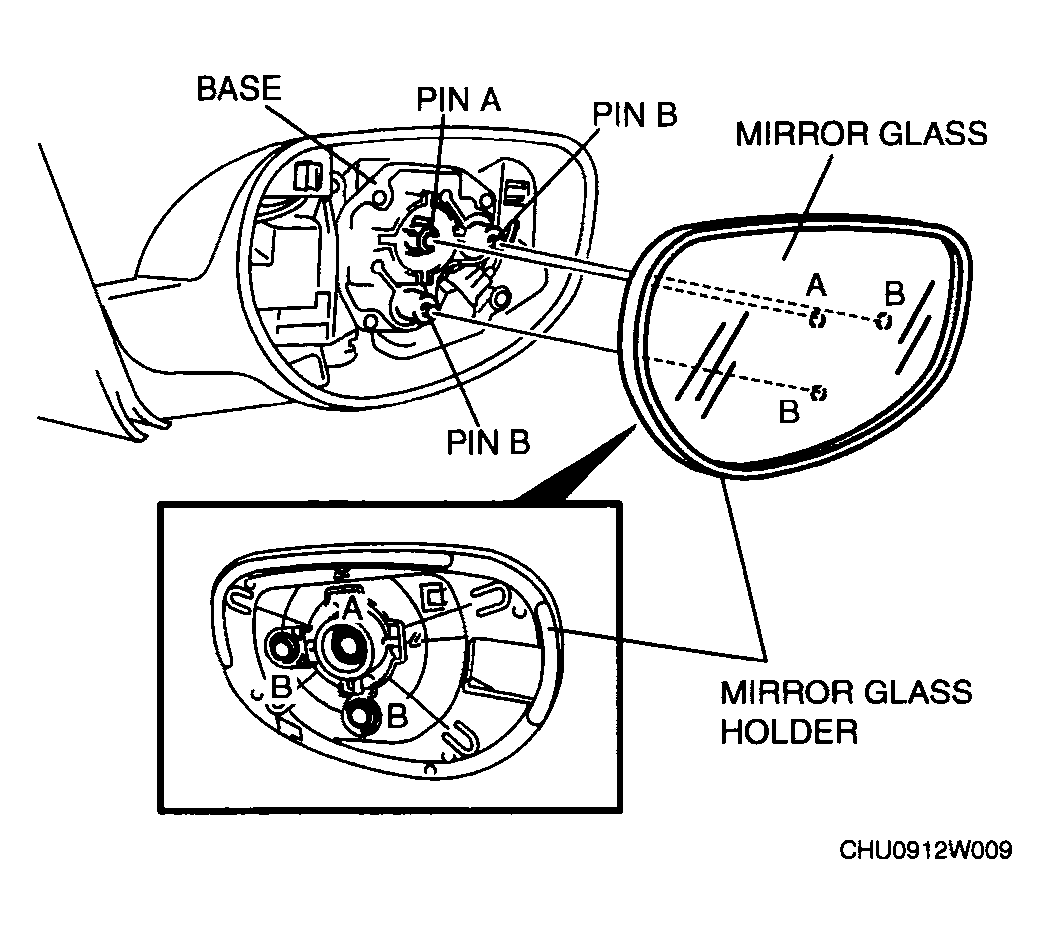

    Fig 1: Installing Mirror Glass Holder And Mirror Glass
    G04315110Courtesy of MAZDA MOTORS CORP.
