Transmitter Id Code Registration

NOTE:
  • When registering the ID code into a keyless control module, verify that other transmitters are not being operated in the vicinity.
  • After ID code registering, remove the key from the steering lock and verify that all doors lock/unlock normally using the transmitter.

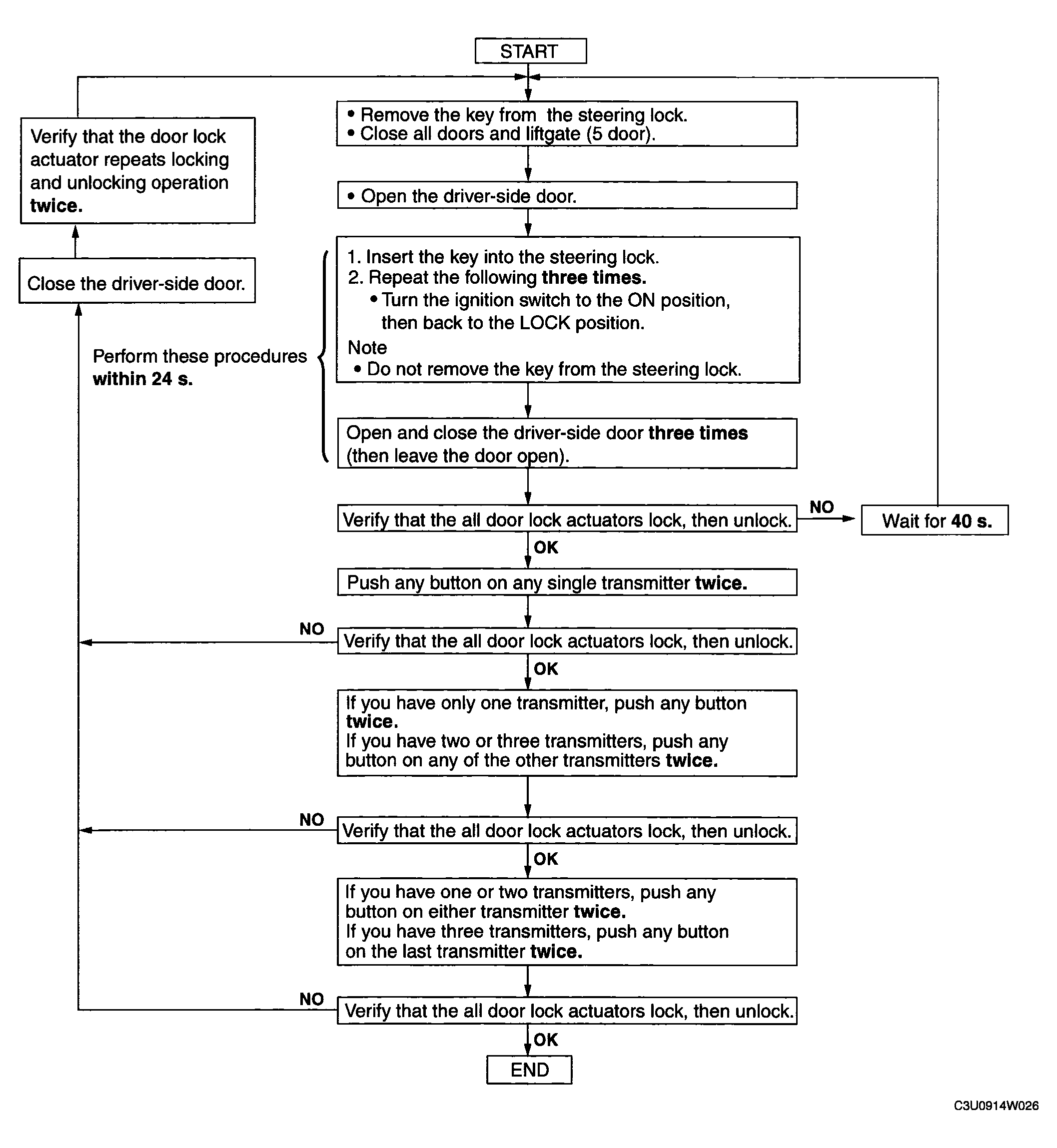

    Fig 1: Transmitter ID Code Registration Flow Chart
    G04315182Courtesy of MAZDA MOTORS CORP.
