EHPAS Control Module And Steering Angle Sensor Connector End View

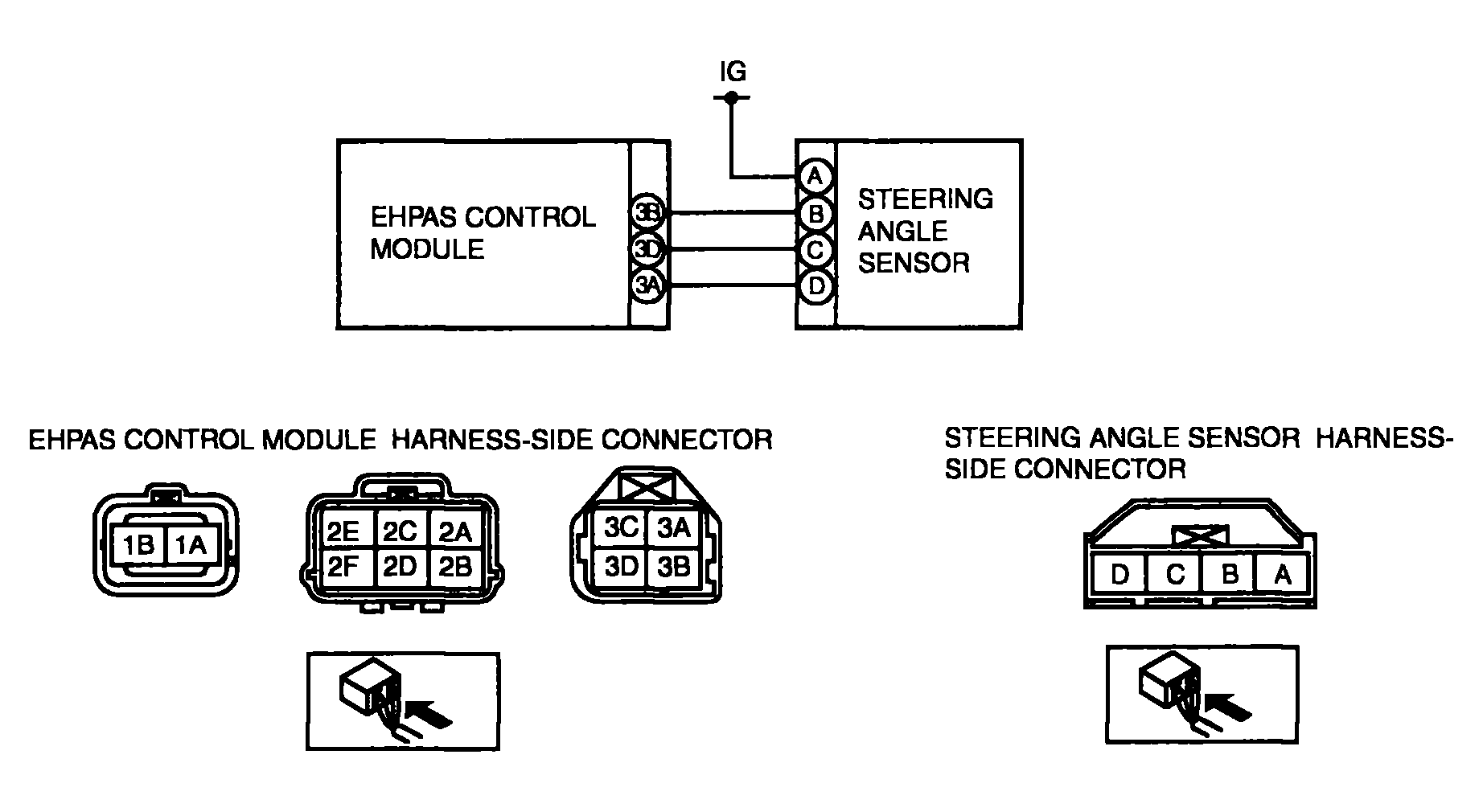

Fig 1: EHPAS Control Module And Steering Angle Sensor Connector End View
G04314615Courtesy of MAZDA MOTORS CORP.
