Except For California Emission Regulation Applicable Model

EXCEPT FOR CALIFORNIA EMISSION REGULATION APPLICABLE MODEL

1	Front HO2S (See HO2S REMOVAL NOTE ).
2	Wiring harness bracket (See WIRING HARNESS BRACKET INSTALLATION NOTE ).
3	Rear HO2S (See HO2S REMOVAL NOTE ).

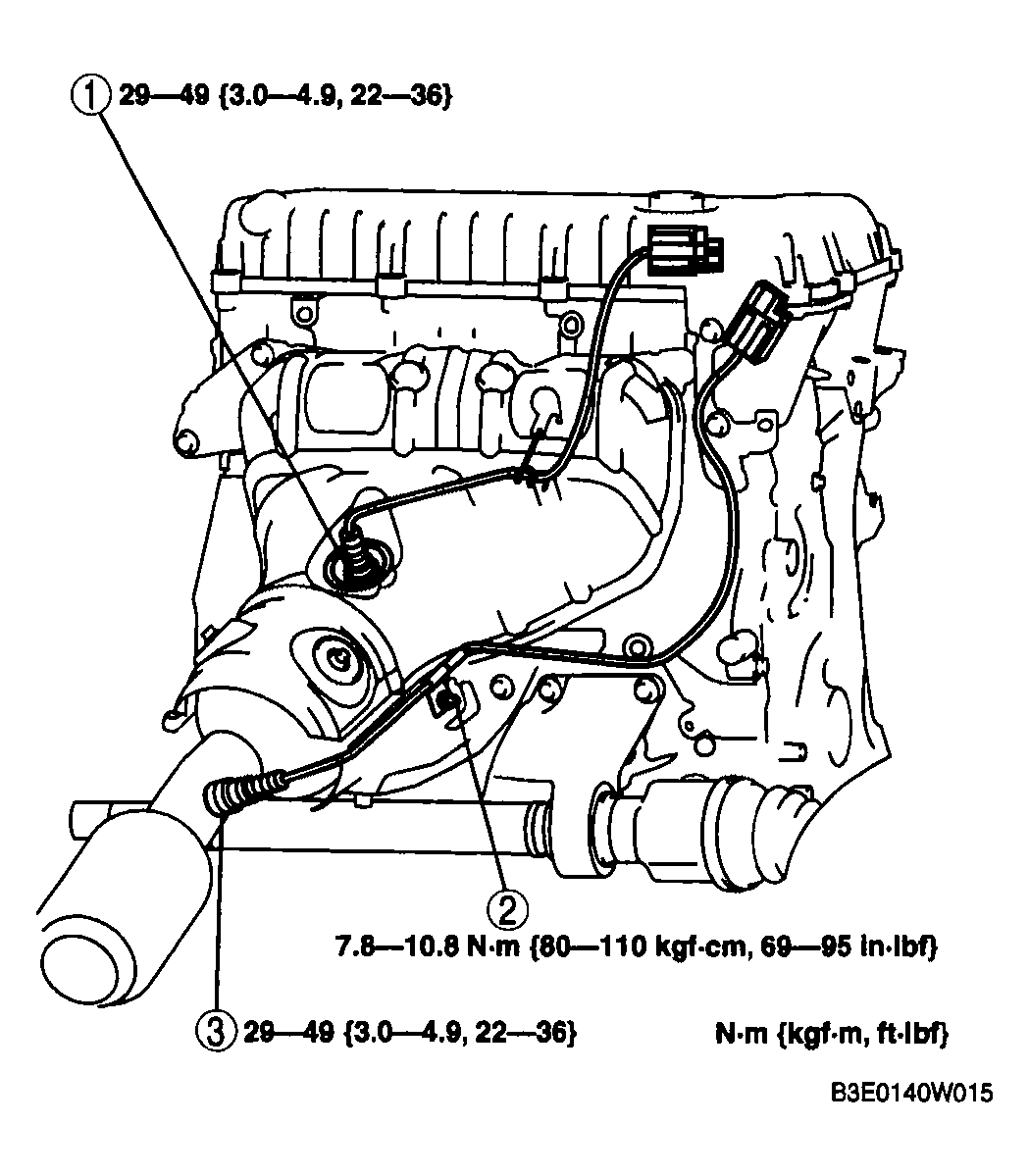

Fig 1: Heated Oxygen Sensor (HO2S) & Torque Specification (Except California Emissions)

Courtesy of MAZDA MOTORS CORP.
