Battery Box Installation Note

  1. Assemble with battery box hooks E aligned with the battery tray holes at two points.

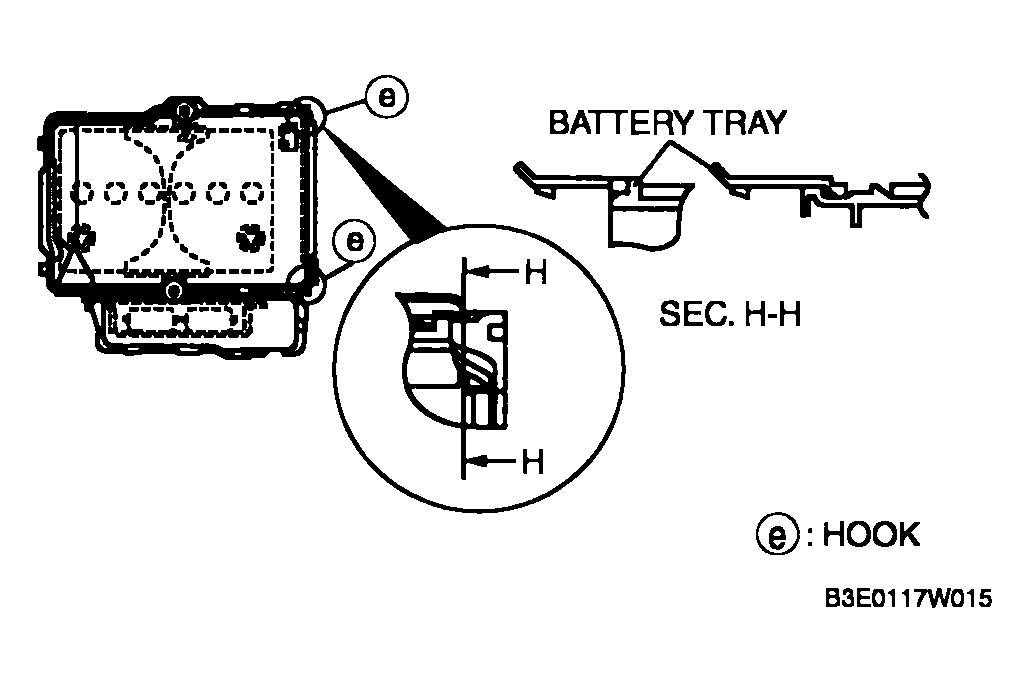

    Fig 1: Assembling Battery Box Hooks
    G04313785Courtesy of MAZDA MOTORS CORP.
