Connector Removal Note

  1. Pull the connector cover up in the direction of the arrow while pressing the tab of the connector cover.
  2. Pull the connector toward the vehicle front and remove it.

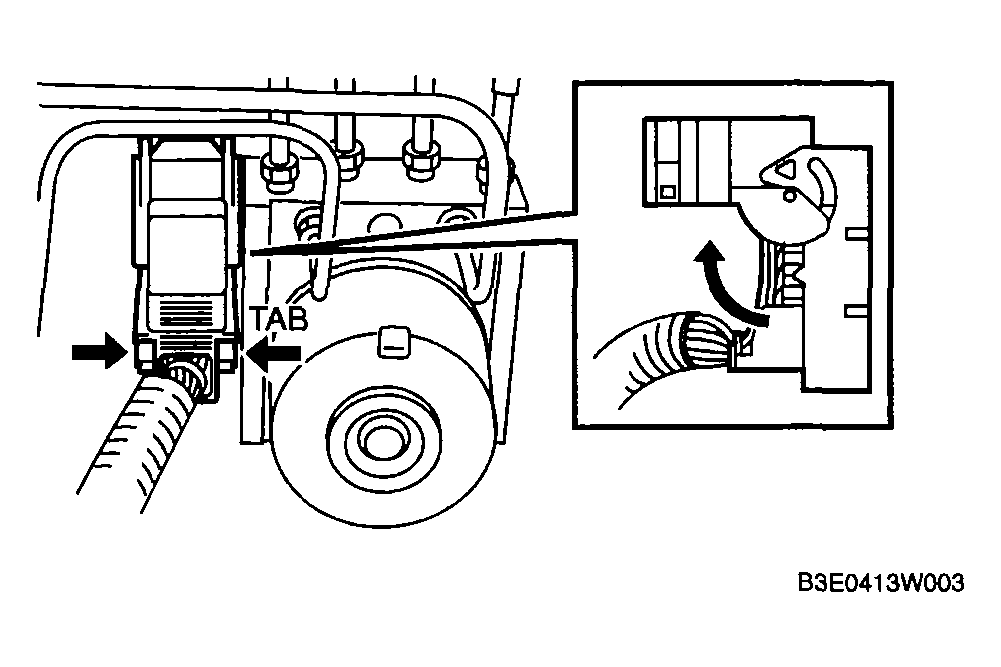

    Fig 1: Pressing Tab Of Connector Cover
    G04314222Courtesy of MAZDA MOTORS CORP.
