Rear Manual Window Regulator Removal/Installation

  1. Remove the following parts:
    1. Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION ).
    2. Sail garnish (5 door) (See SAIL GARNISH REMOVAL/INSTALLATION ).
    3. Rear door garnish (5 door) (See REAR DOOR GARNISH REMOVAL/INSTALLATION ).
    4. Regulator handle (See REGULATOR HANDLE REMOVAL ).
    5. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION ).
    6. Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION ).
  2. Remove the nuts and the bolts.

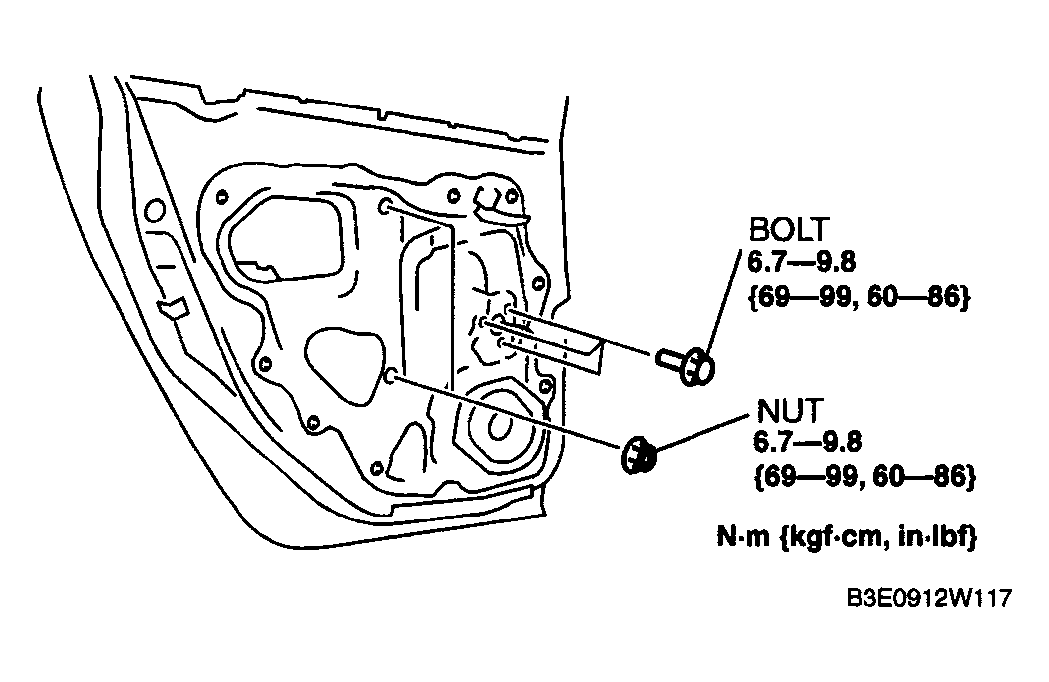

    Fig 1: Removing Window Regulator & Torque Specification
    G04315050Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear manual window regulator through the rear door unit hole.
  4. Install in the reverse order of removal.

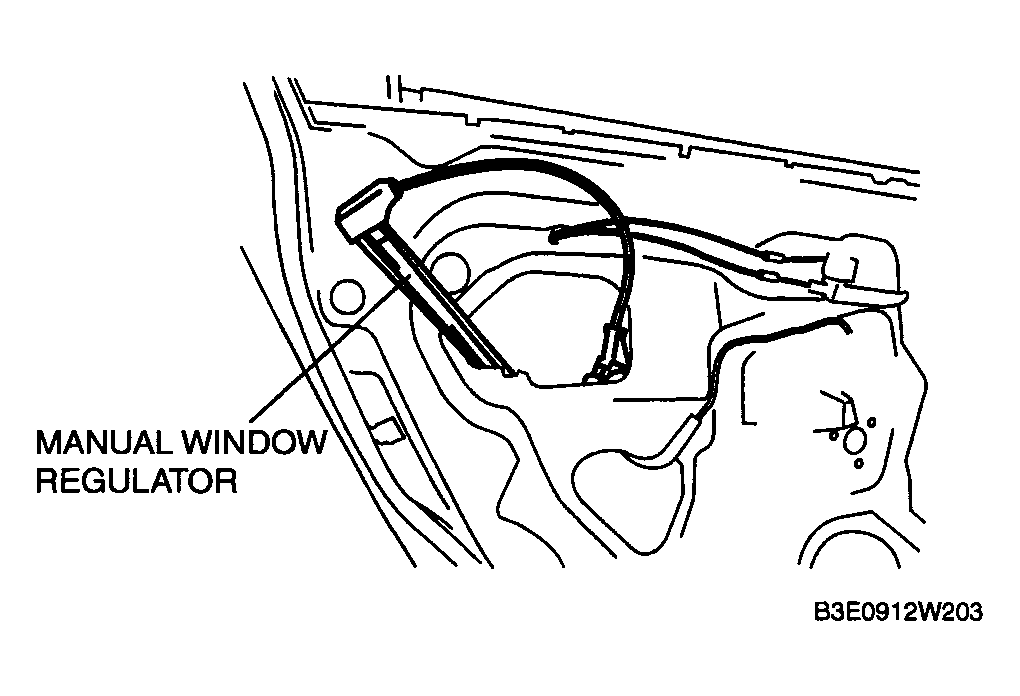

    Fig 2: Removing Rear Manual Window Regulator From Door
    G04315051Courtesy of MAZDA MOTORS CORP.
