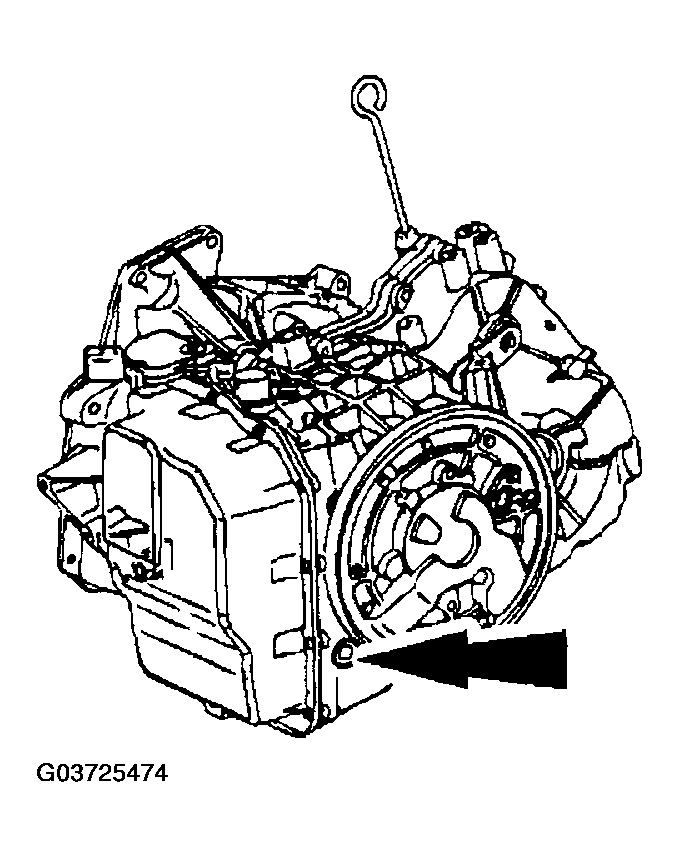

Line Pressure Tap

Fig 1: Connecting Pressure Gauge To Line Pressure Tap

Courtesy of MAZDA MOTORS CORP.

2. Start engine and check line pressures. See following the LINE PRESSURE CHART to determine if line pressure is within specifications.
3. If line pressure is not within specifications, carry out on-board diagnostics and pinpoint test, air pressure check and repair main control system or pump as required.
