Inertia Fuel Shutoff (Ifs) Switch: Notes

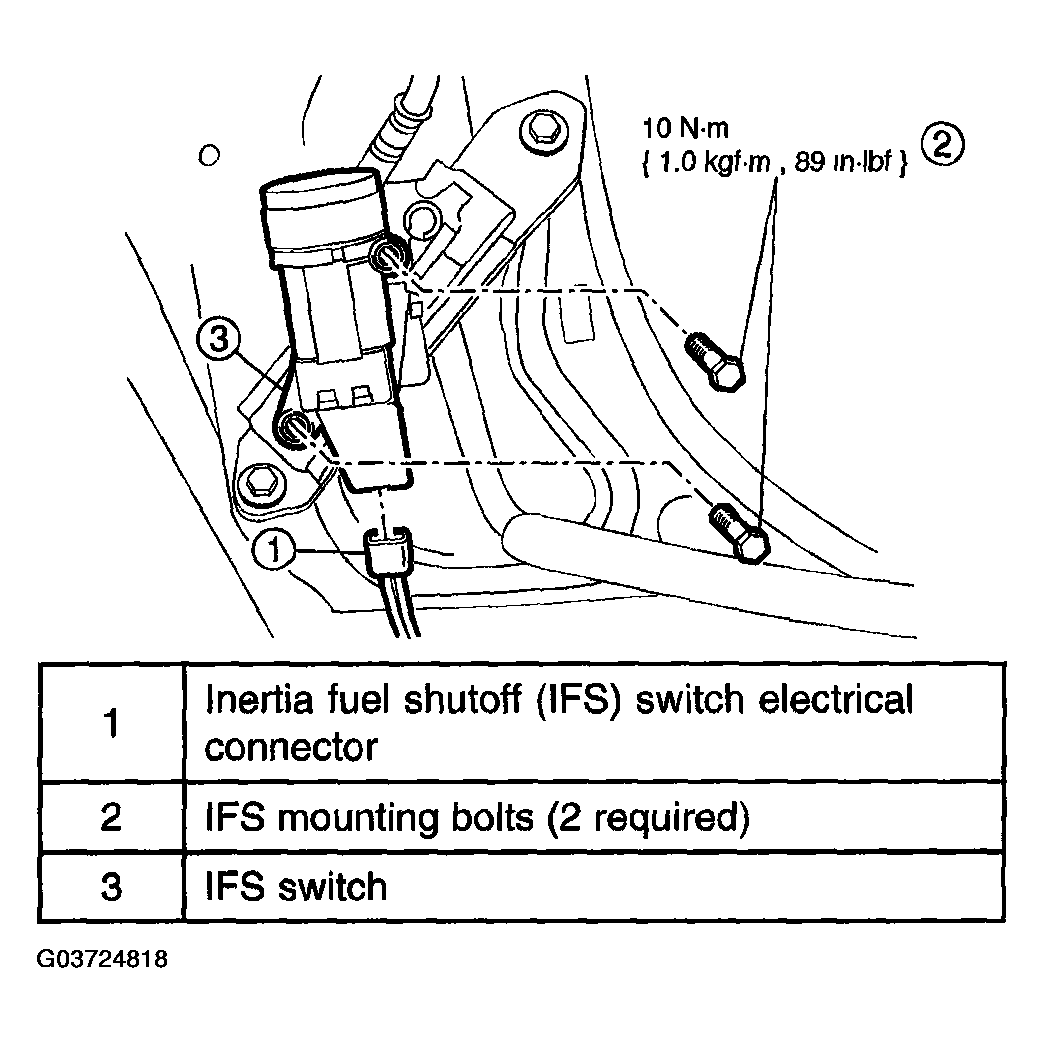

Fig 1: Inertia Fuel Shutoff Switch With Torque Specifications

G03724818

Courtesy of MAZDA MOTORS CORP.
