Mass Air Flow (MAF) Sensor - 2.3L: Notes

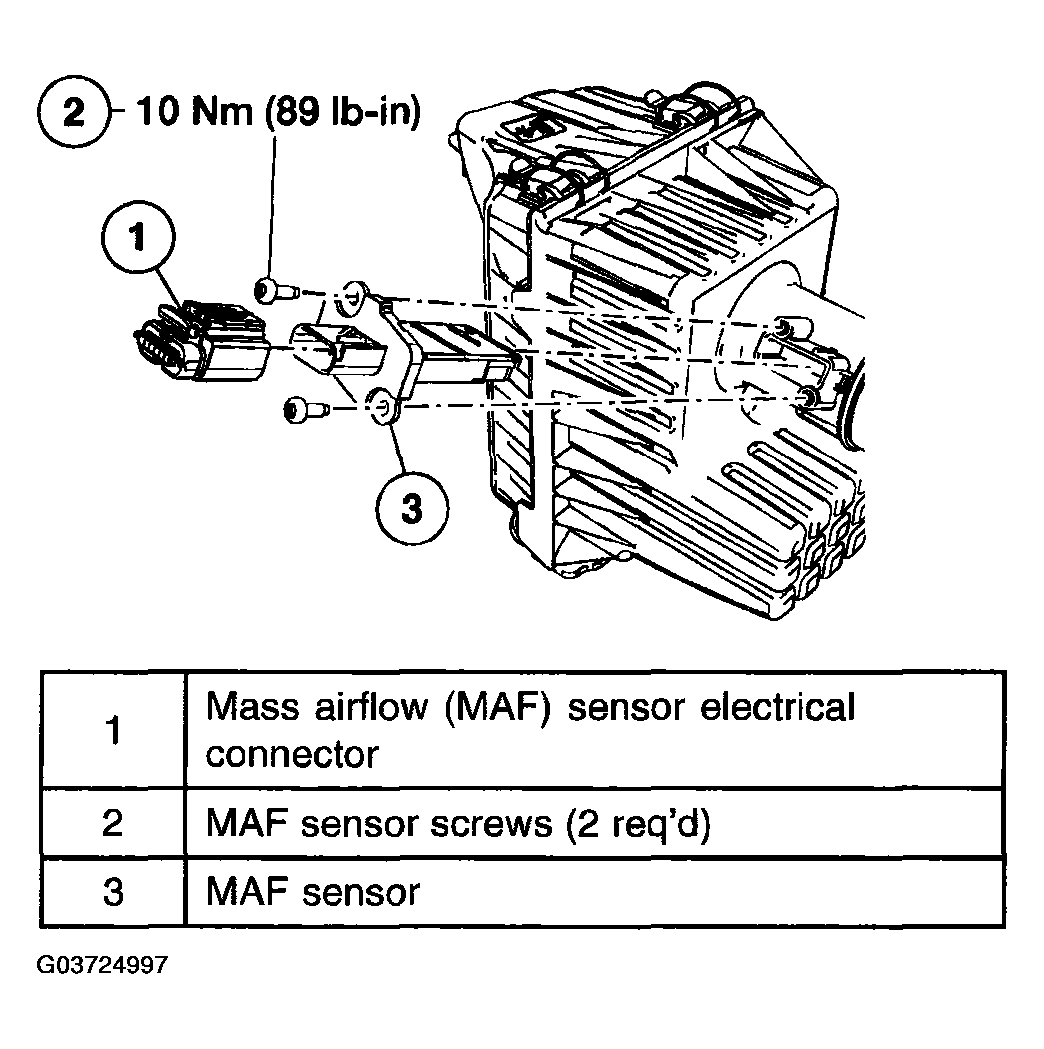

Fig 1: Removing/Installing Mass Air Flow Sensor & Torque Specifications - 2.3L
G03724997Courtesy of MAZDA MOTORS CORP.
