Heated Oxygen Sensor (Ho2S) And Catalyst Monitor Sensor - 2.3L: Notes

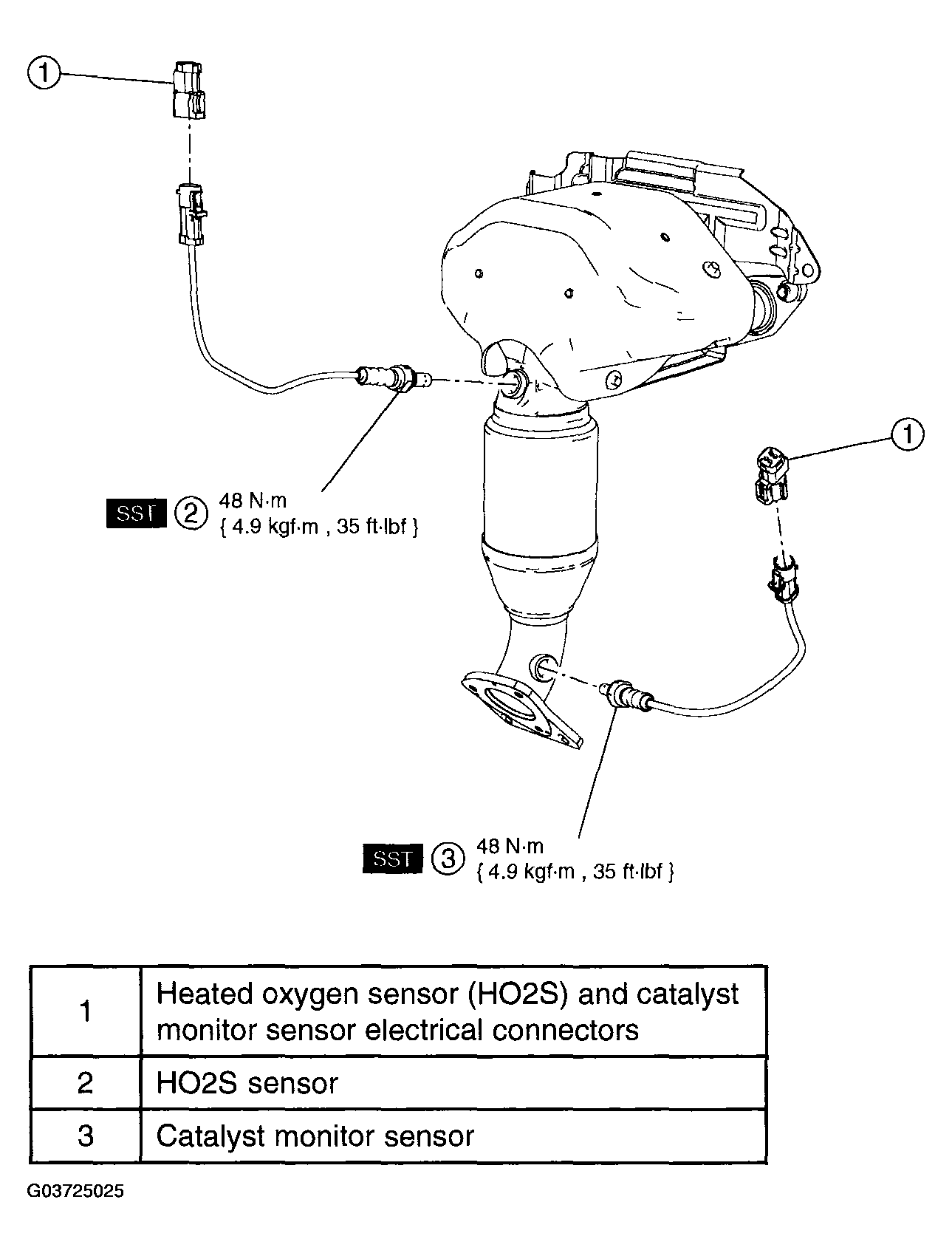

Fig 1: Removing/Installing Heated Oxygen Sensor (HO2S) And Catalyst Monitor & Torque Specifications Sensor - 2.3L
G03725025Courtesy of MAZDA MOTORS CORP.
