Crankshaft Position (CKP) Sensor - 3.0L (4V): Notes

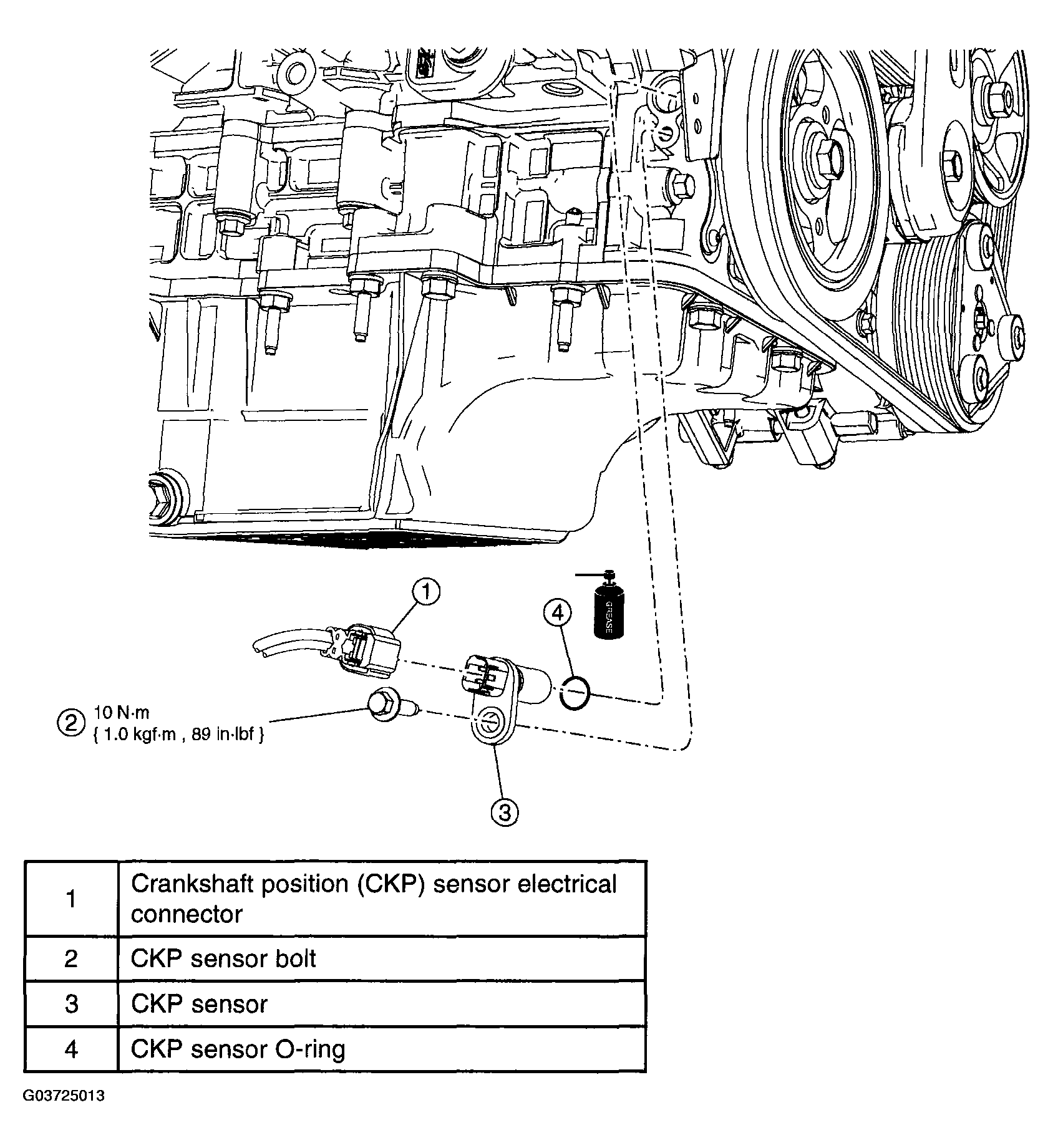

Fig 1: Removing/Installing Crankshaft Position Sensor & Torque Specifications - 3.0L (4V)

G03725013

Courtesy of MAZDA MOTORS CORP.
