Generator - 3.0L (4V): Notes

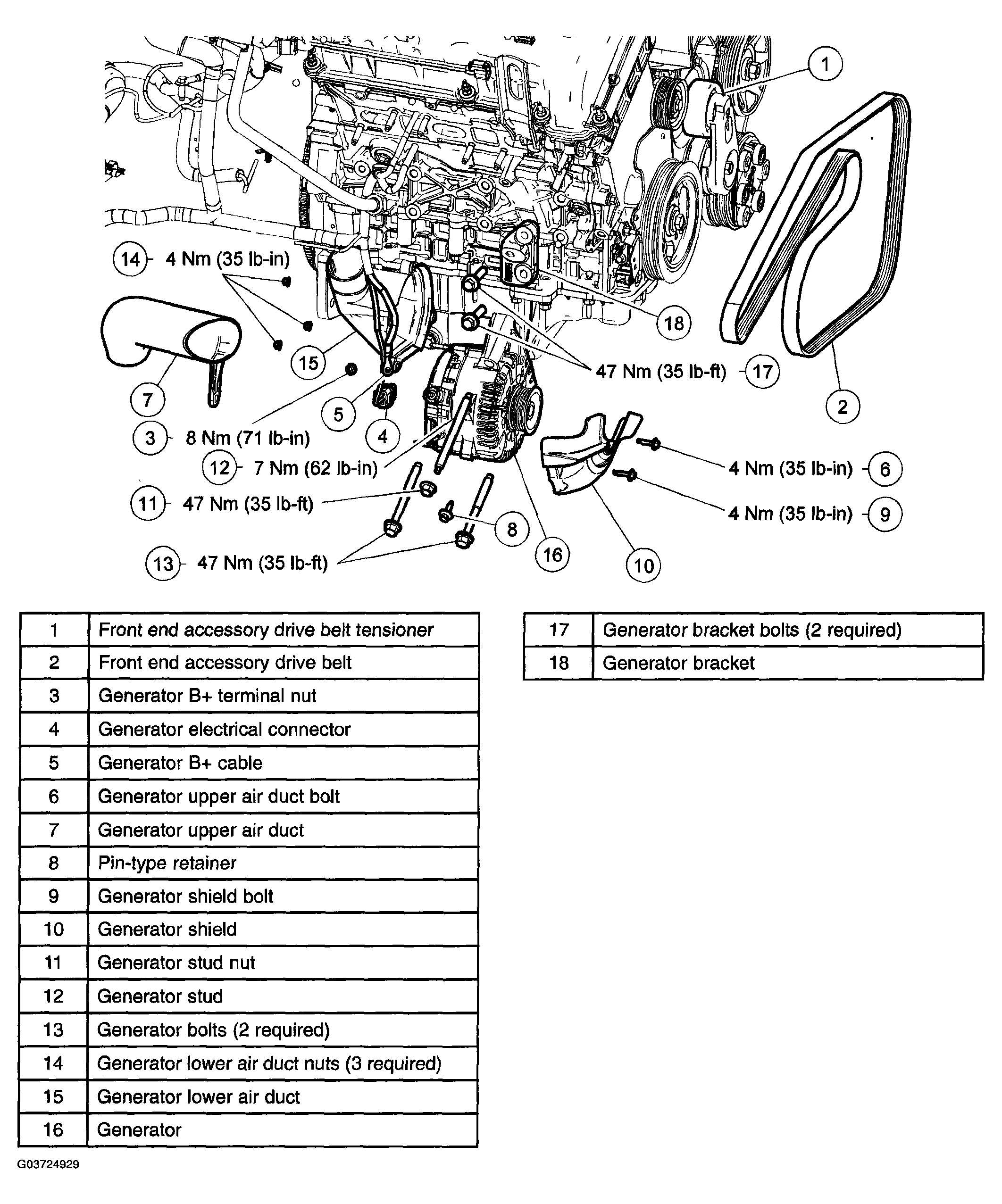

Fig 1: Generator With Torque Specifications -- 3.0L (4V)

G03724929

Courtesy of MAZDA MOTORS CORP.
