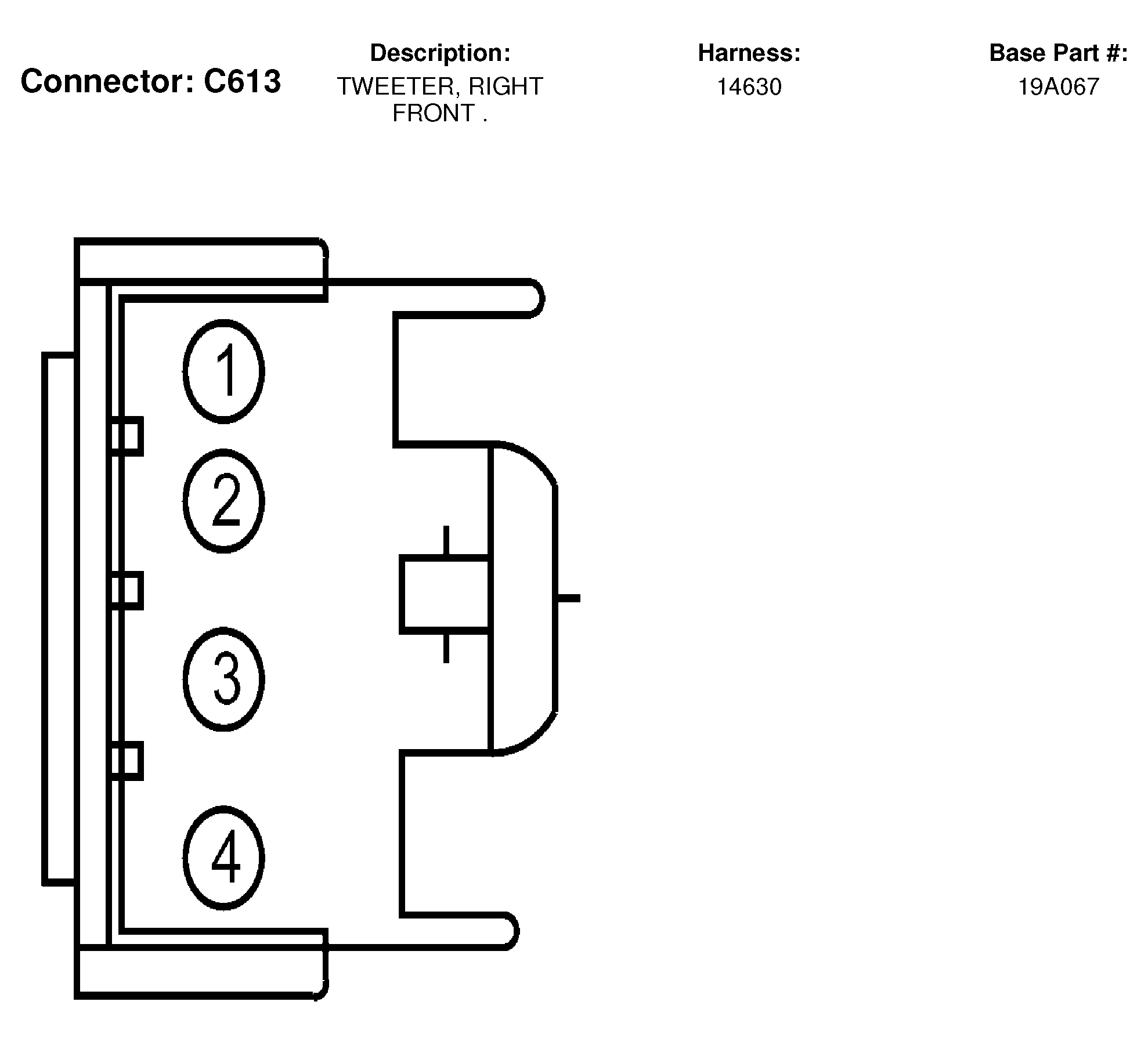

Tweeter, Right Front Connector End View (C613)
Courtesy of FORD MOTOR CO. C613 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
805 (WH-LG) |
20 |
Tweeter, right front + |
|
| 2 |
811 (DG-OG) |
20 |
Tweeter, right front - |
|
| 3 |
187 (DB-OG) |
20 |
Front right + |
|
| 4 |
189 (TN-LB) |
20 |
Front right - |
|
