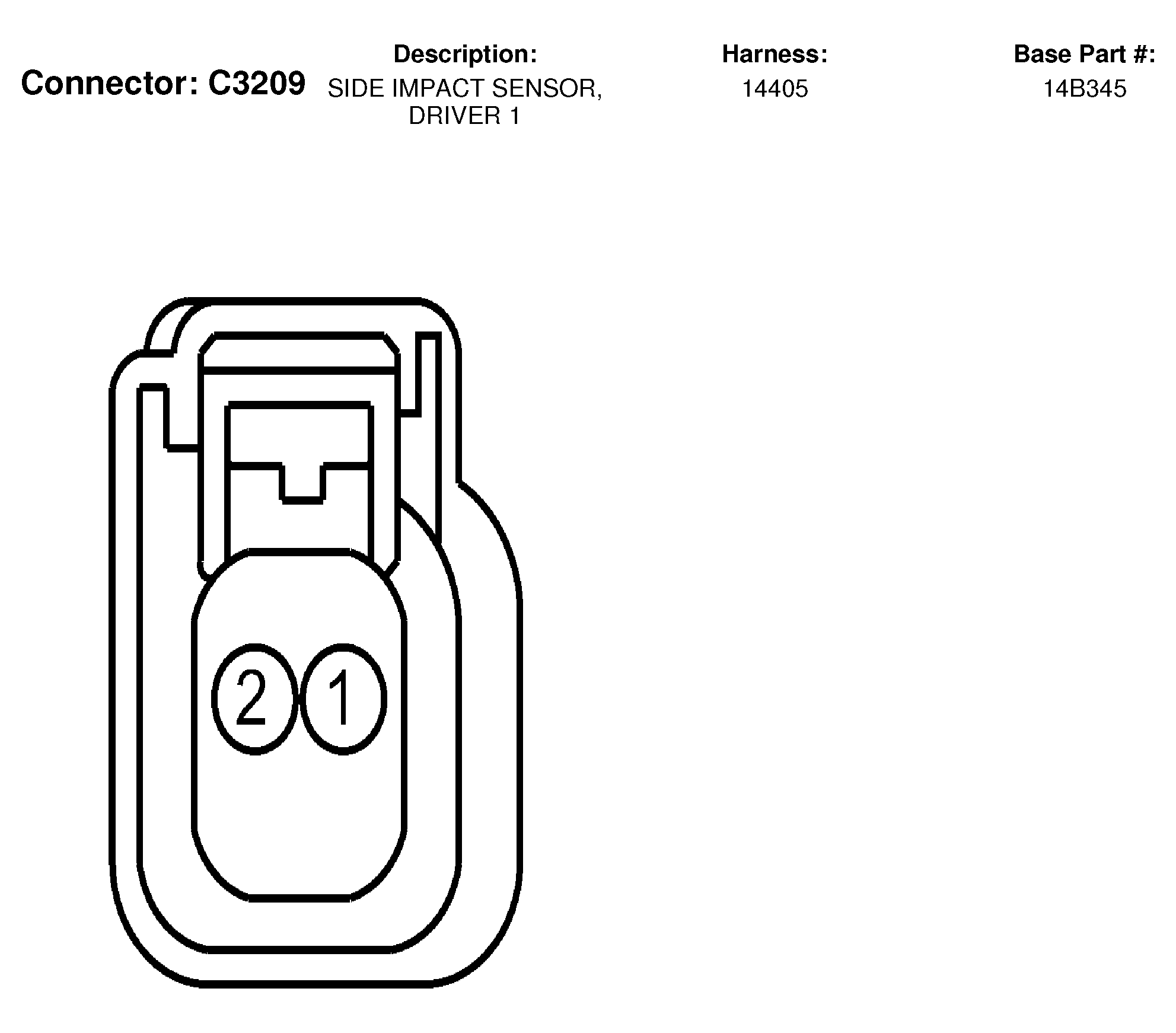

Side Impact Sensor, Driver 1 Connector End View (C3209)
Courtesy of FORD MOTOR CO. C3209 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
1262 (BR-LG) |
20 |
Side impact sensor, driver 1 return |
|
| 2 |
1261 (WH-LG) |
20 |
Side impact sensor, driver 1 feed |
|
