Power Window Motor, Driver Side Front Connector End View (C524)

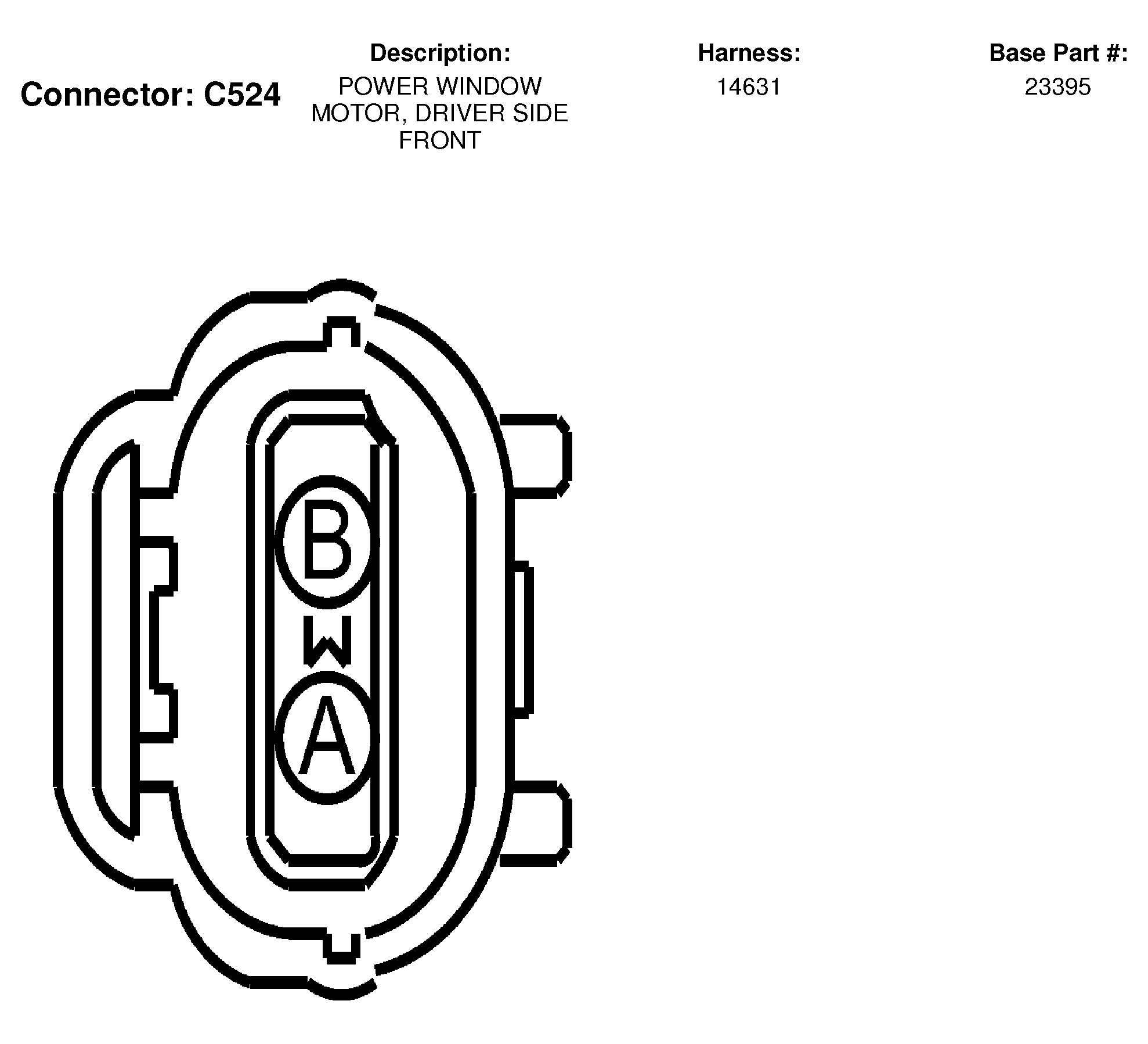

Fig 1: Power Window Motor, Driver Side Front Connector End View (C524)
G03993324Courtesy of FORD MOTOR CO.
C524 CONNECTOR SPECIFICATION

Pin Circuit Gauge Circuit Function Qualifier
A 903 (RD) 14 Window motor feed, Down
B 992 (WH-BK) 14 Window motor feed, Up
