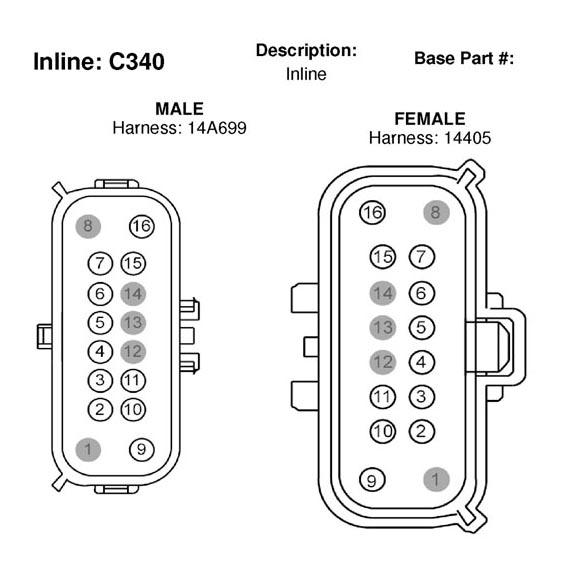

Inline Connector End View (C340)
Courtesy of FORD MOTOR CO. C340 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
* |
* |
|
| 2 |
1919 (PK-OG) |
20 |
|
| 3 |
1203 (BK-LB) |
20 |
|
| 4 |
1082 (LB-BK) |
20 |
|
| 5 |
1081 (YE-RD) |
20 |
|
| 6 |
937 (RD-WH) |
20 |
|
| 7 |
1514 (RD-BK) |
20 |
|
| 8 |
* |
* |
|
| 9 |
581 (RD) |
20 |
|
| 10 |
1918 (BR-WH) |
20 |
|
| 11 |
2089 (OG-BK) |
20 |
|
| 12 |
* |
* |
|
| 13 |
* |
* |
|
| 14 |
* |
* |
|
| 15 |
2088 (TN-RD) |
20 |
|
| 16 |
57 (BK) |
18 |
|
